Description

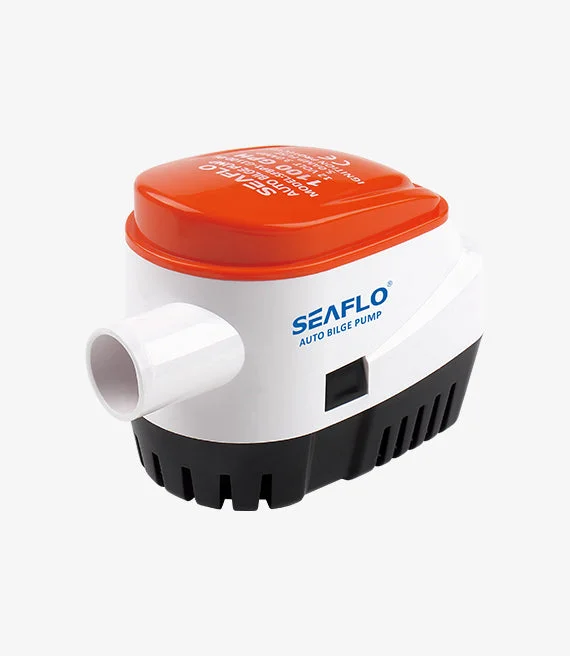

06 Series 1100GPH Seaflo Automatic Bilge Pump
Automatic Bilge Pump，boat bilge pump，auto bilge pump
Voltage：24V
Flow Rate：1100 GPH
Outlet Dia：1-1/8″ (29mm)
Application Scenarios：Marine
Seaflo 1100GPH Automatic Submersible Boat Bilge Water -in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed.
MORE FEATURES & BENEFITS
•All-in-one pump & switch-No float switch required
•Pump turns on when water level rises & shuts off when water is removed
•Will not pump oil-straight motor oil that enters the bilge will not turn the pump on
•Snap-off strainer for easy cleaning
•Anti-fouling impeller
•18 AWG, 1 m long Leads
•2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G1100-06 | 1100 GPH | 12 V | 3.0 A | 6.0 A | 1m /3.0′ |
| SFBP2-G1100-06 | 1100 GPH | 24 V | 1.8 A | 4.0 A | 1m /3.0′ |
|
12V |
24V |
||||||
|
Current(A) |
Flow |
Head(M) |
Current(A) |
Flow |
Head(M) |
||
|
GPH |
LPH |
GPH |
LPH |
||||
| 3.8 | 1141 | 4318 | 0 | 1.8 | 1160 | 4390 | 0 |
| 4.2 | 1020 | 3860 | 0.5 | 2.08 | 1033 | 3909 | 0.5 |
| 4.53 | 865 | 3273 | 1 | 2.32 | 882 | 3338 | 1 |
| 4.8 | 621 | 2350 | 1.5 | 2.51 | 654 | 2475 | 1.5 |
| 5.04 | 433 | 1639 | 2 | 2.79 | 469 | 1775 | 2 |
| 5.21 | 302 | 1143 | 2.5 | 3.15 | 334 | 1264 | 2.5 |
| 5.53 | 182 | 689 | 3 | 3.52 | 188 | 711 | 3 |
| 5.81 | 79 | 299 | 3.5 | 3.73 | 84 | 318 | 3.5 |
For additional info, click below:
Manual Download
