Description

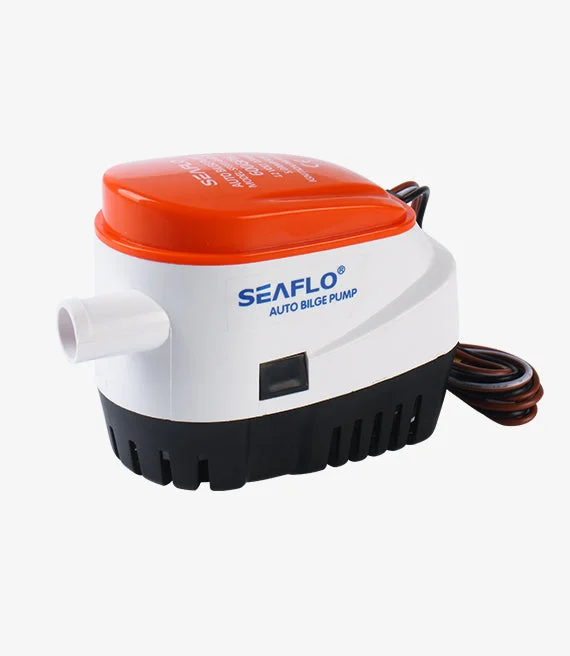

06 Series 600GPH Seaflo Automatic Bilge Pump
Automatic Bilge Pump，boat bilge pump，auto bilge pump
Voltage：24V
Flow Rate：600 GPH
Outlet Dia：3/4″ (19mm)
Application Scenarios：Marine
Seaflo 600GPH Automatic Submersible Boat Bilge Water -in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed.
MORE FEATURES & BENEFITS
•All-in-one pump & switch-No float switch required
•Pump turns on when water level rises & shuts off when water is removed
•Will not pump oil-straight motor oil that enters the bilge will not turn the pump on
•Snap-off strainer for easy cleaning
•Anti-fouling impeller
•18 AWG, 1 m long Leads
•2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G600-06 | 600 GPH | 12 V | 2.5 A | 4.0 A | 1m /3.0′ |
| SFBP2-G600-06 | 600 GPH | 24 V | 1.5 A | 3.0 A | 1m /3.0′ |
|
12V |
24V |
||||||
|
Current(A) |
Flow |
Head(M) |
Current(A) |
Flow |
Head(M) |
||
|
GPH |
LPH |
GPH |
LPH |
||||
| 1.84 | 557 | 2108 | 0 | 0.94 | 589 | 2229 | 0 |
| 2.73 | 472 | 1786 | 0.5 | 1.66 | 462 | 1748 | 0.5 |
| 3.45 | 243 | 920 | 1 | 2.37 | 213 | 806 | 1 |
| 4 | 0 | 0 | 1.5 | 3 | 0 | 0 | 1.5 |
SHIPPING INFORMATION
|
Unit Pump Weight |
1.02 lbs (0.47 kg) |
|
Selling Unit Size (L x W x H) |
6.14″x 3.62″ x 4.57″ (15.6 x 9.2 x 11.6 cm) |
|
Selling Unit Weight |
1.33 lbs (0.6 kg) |
|
Master Carton Size (L x W x H) |
20.47″ x 14.96″ x 10.39″ (52 x 38 x 26.4 cm) |
|
Master Carton Qty |
20 pcs |
|
Master Carton Weight |
26.46 lbs (12 kg) |
For additional info, click below:
Manual Download
