Description

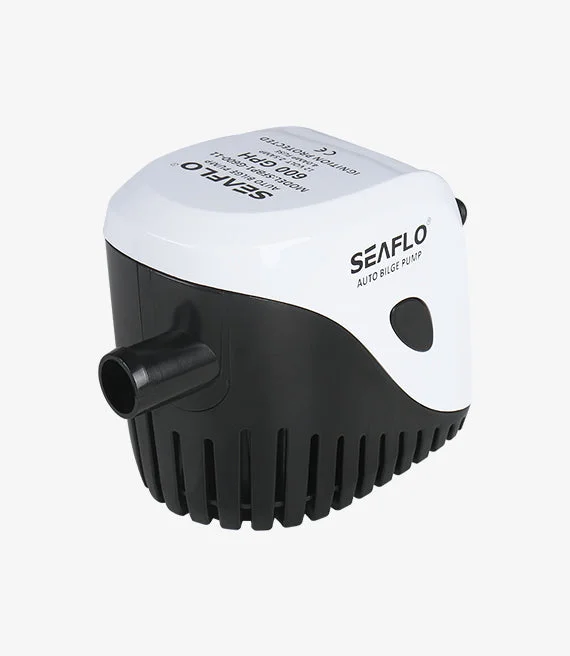

11 Series 600 GPH SEAFLO Automatic Bilge Pump with Magnetic Float Switch
Automatic Bilge Pump，12v submersible pump ，12v bilge pump
Voltage：12V
Flow Rate：600 GPH
Outlet Dia：3/4″ (19mm)
Application Scenarios：Marine
Seaflo 600GPH Automatic Submersible Boat Bilge Water revolutionary, patented -in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is -in magnetic float switch for longevity! (No separate float switch is needed)
MORE FEATURES & BENEFITS
•All-in-one pump & Electromagnetic sensor switch
•Enclosed construction offers advanced reliability
•Allows for effortless installation and service
•With the ability to quick disconnect the power line and the strainer base in seconds
•Proper pump care has never been easier
•Available in 600, 750, and 1100 GPH
•Snap-off strainer base for easy cleaning
•Our revolutionary, patented design
•18 AWG, 1 m long leads
•2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G600-11 | 600 GPH | 12 V | 2.5 A | 4.0 A | 1 m/3.0′ |
| SFBP2-G600-11 | 600 GPH | 24 V | 1.5 A | 3.3 A | 1 m/3.0′ |
|
12V |
24V |
||||||
|
Current(A) |
Flow |
Head(M) |
Current(A) |
Flow |
Head(M) |
||
|
GPH |
LPH |
GPH |
LPH |
||||
| 2.1 | 617 | 2335 | 0 | 1.52 | 623 | 2358 | 0 |
| 2.42 | 544 | 2059 | 0.5 | 1.86 | 568 | 2149 | 0.5 |
| 2.87 | 386 | 1461 | 1 | 2.16 | 388 | 1468 | 1 |
| 3.32 | 241 | 912 | 1.5 | 2.73 | 226 | 855 | 1.5 |
| 3.86 | 115 | 435 | 2 | 3.14 | 94 | 356 | 2 |
| 4 | 0 | 0 | 2.3 | 3.3 | 0 | 0 | 2.3 |
SHIPPING INFORMATION
|
Unit Weight |
1.21 lbs (0.55 kg) |
|
Selling Unit Size (L x W x H) |
6.89″ x 3.62″ x 4.56 “ ( 17.5 x 9.2 x 11.6 cm) |
|
Selling Unit Weight |
1.32 lbs (0.6 kg) |
|
Master Carton Size (L x W x H) |
19.29″ x 14.37″ x 11.22″ (49 x 36.5 x 28.5 cm) |
|
Master Carton Qty |
20 pcs |
|
Master Carton Weight |
26.46 lbs (12 kg) |
|
Master Carton Volume |
0.051 m³ |
For additional info, click below:
Manual Download
