Description

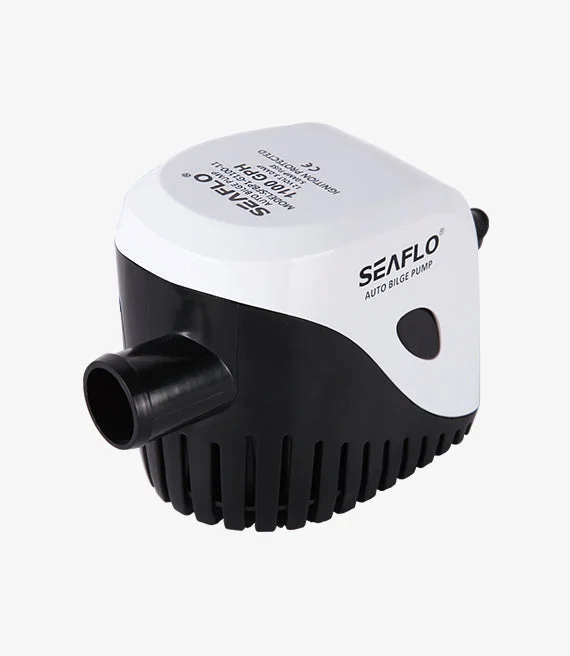

11 Series 1100 GPH SEAFLO Automatic Bilge Pump with Magnetic Float Switch
Automatic Bilge Pump，24v submersible pump
Voltage：24V
Flow Rate：1100 GPH
Outlet Dia：1-1/8″ (29mm)
Application Scenarios：Marine
Seaflo 1100GPH Automatic Submersible Boat Bilge Water revolutionary, patented -in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is -in magnetic float switch for longevity! (No separate float switch is needed)
MORE FEATURES & BENEFITS
•All-in-one pump & Electromagnetic sensor switch
•Enclosed construction offers advanced reliability
•Allows for effortless installation and service
•With the ability to quick disconnect the power line and the strainer base in seconds
•Proper pump care has never been easier
•Available in 600, 750, and 1100 GPH
•Snap-off strainer base for easy cleaning
•Our revolutionary, patented design
•18 AWG, 1 m long leads
•2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G1100-11 | 1100 GPH | 12 V | 3.0 A | 5.0 A | 1m /3.0′ |
| SFBP2-G1100-11 | 1100 GPH | 24 V | 1.8 A | 2.9 A | 1m /3.0′ |
|
12V |
24V |
||||||
|
Current(A) |
Flow |
Head(M) |
Current(A) |
Flow |
Head(M) |
||
|
GPH |
LPH |
GPH |
LPH |
||||
| 3.3 | 1100 | 4163 | 0 | 1.3 | 1090 | 4125 | 0 |
| 3.52 | 996 | 3769 | 0.5 | 1.53 | 985 | 3727 | 0.5 |
| 3.78 | 806 | 3050 | 1 | 1.8 | 763 | 2887 | 1 |
| 4.12 | 633 | 2395 | 1.5 | 2.04 | 605 | 2289 | 1.5 |
| 4.36 | 506 | 1915 | 2 | 2.13 | 481 | 1820 | 2 |
| 4.55 | 311 | 1177 | 2.5 | 2.51 | 263 | 995 | 2.5 |
| 4.83 | 122 | 462 | 3 | 2.77 | 99 | 375 | 3 |
| 5 | 0 | 0 | 3.4 |
For additional info, click below:
Manual Download
