Description
Alarm Switch Panel
Alarm control switch panel, marine switch panel, bilge pump control switch
Voltage：24V
Amps：20A / 10A
Wire Gauge Size：16AWG
Wire Lead：100mm

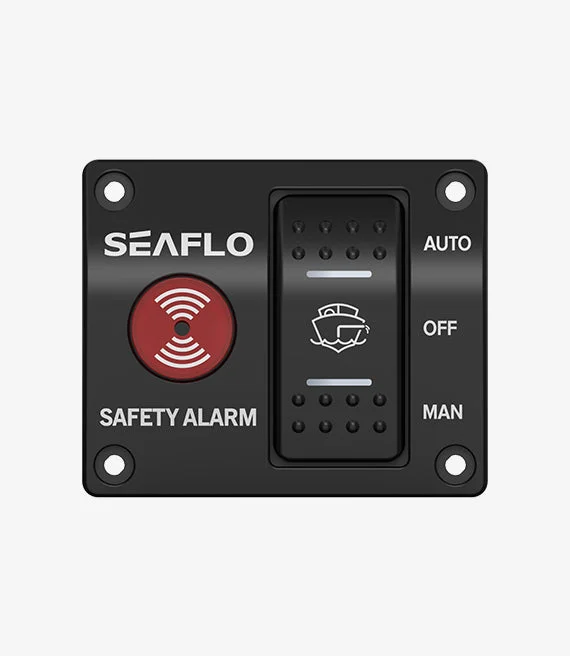

SEAFLO alarm switch panel consists of three-position control buttons and an 85-decibel buzzer. It is a safety reminder control device that integrates visual, auditory and switch control. It can be used with electric field bilge switch, float switch or other places (not limited to the use of cabin water level safety reminders, but can be used in other places that require safety reminders); control any 12V or 24V DC bilge pump with automatic float switch.
FEATURES & BENEFITS
• For use with seaflo electric field bilge switch，precise operation ensures proper bilge pumping and provides peace of mind.
• Controls any pump equipped with an automatic float switch.
• Unique 3-way switch disables piezo alarm while keeping warning LED lit.
• Three way rocker switch allows alarm to be auto, turned off and man (AUTO-OFF-MAN).
• Marine switch panel，easy to install
STANDARD CONFIGURATIONS
| Model Number | Voltage | Current | Alarm volume | N.W. | Wire Gauge Size /length |
| SFASP1-01 | 12V DC | 20 | ≥85DB | 0.2KG | 16AWG/100mm |
| SFASP2-01 | 24V DC | 10 | ≥85DB | 0.2KG | 16AWG/100mm |
For additional info, click below:
Manual Download
