Description
High Water Bilge Alarm
High water level alarm device, bilge pump alarm device, float switch alarm system
Voltage：12V
Amps：20A / 10A
Wire Gauge Size：16AWG (Switch) / 28AWG (Alarm)
Wire Lead：1000mm (Switch) / 150mm (Alarm)

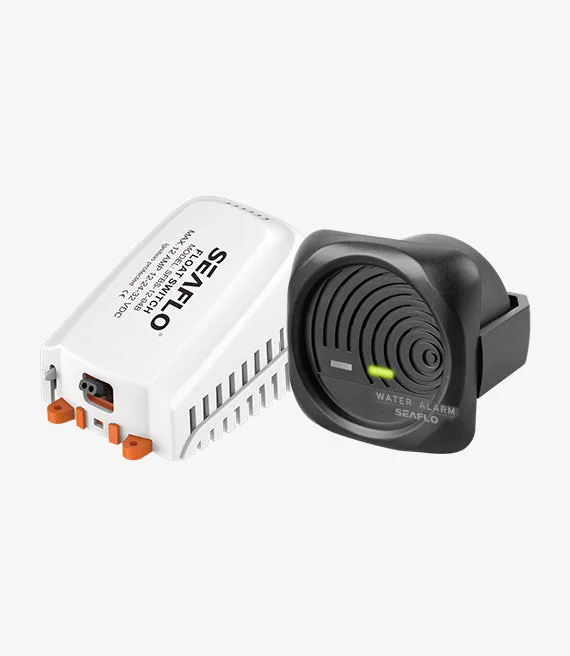

SEAFLO High Water Bilge Alarm consists of a non-mercury float switch and an in-dash gauge that features both a visual and an audible 95 db alarm. This unit allows an unmanned com part ment to be constantly monitored. For additional compartments add additional SEAFLO Float Switches. Use with SFBS-12-04B float switch, or applications in other places.
FEATURES & BENEFITS
• A safety reminder device integrating vision and hearing.
• Consists of a float switch and a 95 DB alarm.
• Allows an unarmed compartment to be constantly monitored.
• Rated to handle pumps up to 20A at 12V or 10A at 24V.
• Turn on when water level higher than 45-55mm(1.77″-1.97″).
• Turn off when water level lower than 20-25mm(0.79″-0.98″).
• The float switch comes with a filter housing to keep debris out.
• 2-year global warranty
STANDARD CONFIGURATIONS
|
Model Number |
Voltage |
Current |
Alarm volume |
N.W. |
Wire Gauge Size /length |
|
SFWAS1-20-02 |
12V DC |
20 |
≥95DB |
0.3KG |
16AWG/1000mm (Switch) 28AWG/150mm (Alarm) |
|
SFWAS2-10-02 |
24V DC |
10 |
≥95DB |
0.3KG |
For additional info, click below:
Manual Download
