Description

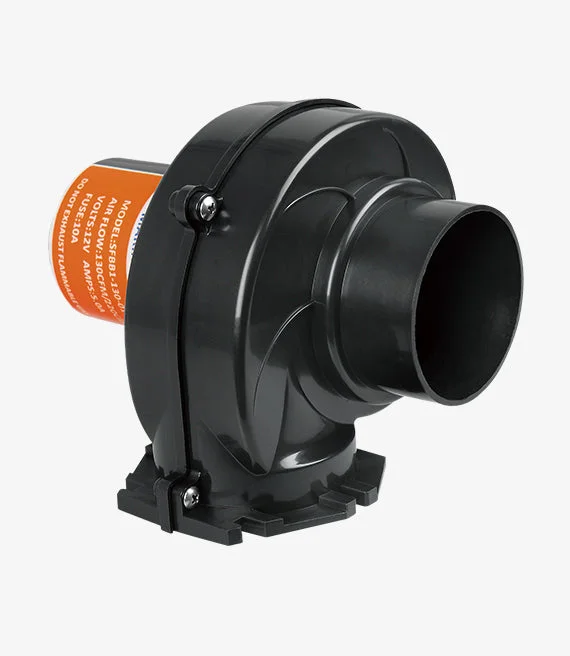

01 Series Flange/Flex Mount Bilge Blower 130CFM
Snail blower, bilge fan, blower
Voltage：24V
Air Flow (cfm/cmh)：130/220
Provides ventilation for engine compartments, galleys, bilges and heads. Designed for efficient, high output operation, these blowers feature our exclusive front and rear shaft seals and corrosion resistant motor housings, black ABS plastic construction for long life and use in the marine environment.
MORE FEATURES & BENEFITS
• Dual Mounting Options
• Efficient high volume air flow
• Very low current draw, long life
• Flex Mount or Flange Mount
• Sealed motor shaft for moisture protection
• Corrosion resistant ABS plastic housing
• Ignition protected
• CE conforms with EN 50014-1, EN N 61000-3-3
STANDARD CONFIGURATIONS
| Model | Voltage | Air Flow | Max Draw (A) | Fuse |
| SFBB1-130-01 | 12V | 130/220 | 2.5A | 5A |
| SFBB2-130-01 | 24V | 130/220 | 1.5A | 3A |
SHIPPING INFORMATION
|
Unit Weight |
1.83 lbs (0.83 kg) |
|
Selling Unit Size (L x W x H) |
7.48″ x 11.02″ x 7.99″(19 x 28 x 20.3 cm) |
|
Selling Unit Weight |
2.2 lbs (1 kg) |
|
Master Carton Size (L x W x H) |
22.05″x 15.75″ x 9.06″ (56 x 40 x 23 cm) |
|
Master Carton Qty |
6 pcs |
|
Master Carton Weight |
14.95 lbs (6.78 kg) |
|
Master Carton Volume |
0.052 m³ |
For additional info, click below:
Manual Download
