Description

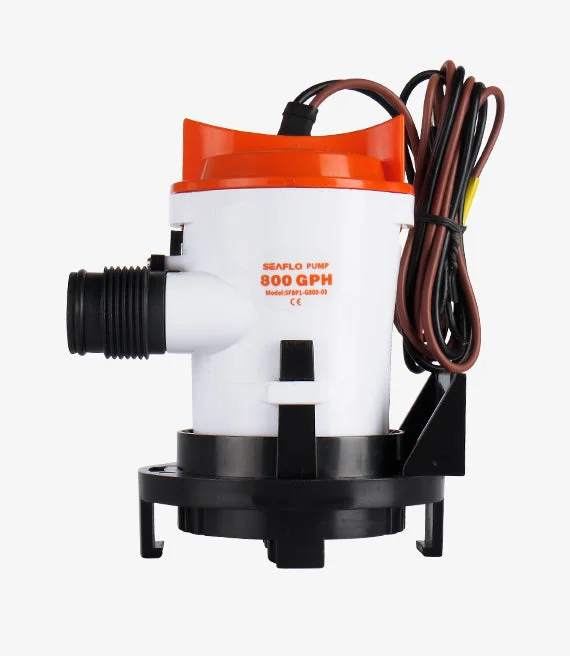

03 Series 800GPH 12V Seaflo Bilge Pump/Side Mounting Strainer Base
Seaflo Bilge Pump，boat pump
Voltage：12V
Flow Rate：800 GPH
Outlet Dia：3/4″ (19mm)
Application Scenarios：Marine
SEAFLO 03 Series 800GPH Seaflo Bilge our 02-series, this mounting bracket allows the pump to be mounted vertically. In addition, this model allows for the utmost flexibility with a removable cartridge for easy maintenance. The standard connection is threaded but included are adaptors to barbed in order to be flexible to your specific for DC 12 Voltage & 24 Voltage.
MORE FEATURES & BENEFITS
•Pump and switch are stand alone products
•Traditional operation by switch or float switch
•Robust, easy click-in, replaceable motor
•Compact, efficient, long life motors, quiet and vibration-less operation
•Size: 350, 600, 800gph in 12 volt version
•Easy clean snap-lock strainer bases
•Completely submersible
•Marine grade blocked wiring
•Entirely submersible
•18 AWG, 1 m long leads
•2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G800-03 | 800 GPH | 12 V | 4.0 A | 7.4 A | 3′ (1 m) |
|
12V |
|||
|
Current(A) |
Flow |
Head(M) |
|
|
GPH |
LPH |
||
| 3.35 | 702 | 2657 | 0 |
| 4.08 | 589 | 2229 | 0.5 |
| 4.76 | 455 | 1722 | 1 |
| 5.69 | 321 | 1215 | 1.5 |
| 6.46 | 208 | 787 | 2 |
| 7.12 | 94 | 356 | 2.5 |
| 7.4 | 0 | 0 | 2.7 |
SHIPPING INFORMATION
|
Unit Weight |
0.84 lbs (0.38 kg) |
|
Selling Unit Size (L x W x H) |
15.35″ x 8.07″ (39 x 20.5 cm) |
|
Selling Unit Weight |
1.06 lbs (0.48 kg) |
|
Master Carton Size (L x W x H) |
23.15″ x 16.73″ x 16.54″ (58.8 x 42.5 x 42 cm) |
|
Master Carton Qty |
40 pcs |
|
Master Carton Weight |
46.30 lbs (21 kg) |
|
Master Carton Volume |
0.105 m³ |
