Description

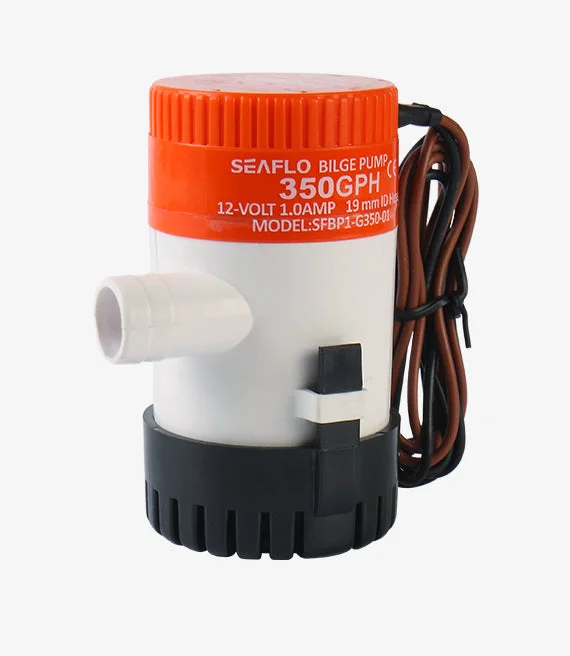

01 Series 350GPH Seaflo Bilge Pump
12v bilge pump，boat bilge pump，marine pump
Voltage：12V
Flow Rate：350 GPH
Outlet Dia：3/4″ (19mm)
Application Scenarios：Marine
SEAFLO 12V Electric Marine Submersible non-automatic 350GPH bilge pumps offer water evacuation activated by a panel or float switch. Include Anti-Airlock protection and exclusive moisture tight seals,marine grade blockd larger impeller design and more robust motor allow us to outperform our competitors. Our removable strainer base fits industry standard mounting conventions though, so you’ll have no problem changing to us from them.
MORE FEATURES & BENEFITS
•CE, RoHS, ISO 8846, ISO 8849 standards
•Traditional operation by switch or float switch
•Pump and switch are stand alone products
•Snap-off strainer base for easy maintenance
•Sealed efficient, long life motors, quiet operation
•Entirely Submersible
•Stainless steel shaft
•Anti-Airlock protection
•Exclusive moisture tight seals
•Marine grade blocked wiring
•2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate |
Voltage |
Current |
Head |
Wire Lead |
| SFBP1-G350-01（12 V） | 350 GPH | 12 V | 1.0 A | 3.3′ (1 m) | 1m /3.0′ |
|
12V |
13.6V |
||||||
|
Current(A) |
Flow |
Head(M) |
Current(A) |
Flow |
Head(M) |
||
|
GPH |
LPH |
GPH |
LPH |
||||
|
0.87 |
328 |
1241 |
0 |
0.94 |
352 |
1332 |
0 |
|
1.22 |
176 |
666 |
0.5 |
1.35 |
185 |
700 |
0.5 |
|
2 |
0 |
0 |
1 |
1.76 |
45 |
170 |
1 |
| 2 | 0 | 0 | 1.2 |
SHIPPING INFORMATION
|
Unit Weight |
0.75 lbs (0.34 kg) |
|
Selling Unit Size (L x W x H) |
3.94″ x 3.54″ x 4.65″ (10 x 9 x 11.8 cm)（Carton) 7.68″ x 5.71″ (19.5 x 14.5 cm)（Clam） |
|
Selling Unit Weight |
0.82 lbs (0.37 kg) |
|
Master Carton Size (L x W x H) |
20.47″ x 12.60″ x 10.31″ (52 x 32 x 26.2 cm) |
|
Master Carton Qty |
40 pcs |
|
Master Carton Weight |
35.27 lbs (16 kg) |
|
Master Carton Volume |
0.044 m³ |
For additional info, click below:
Manual Download
