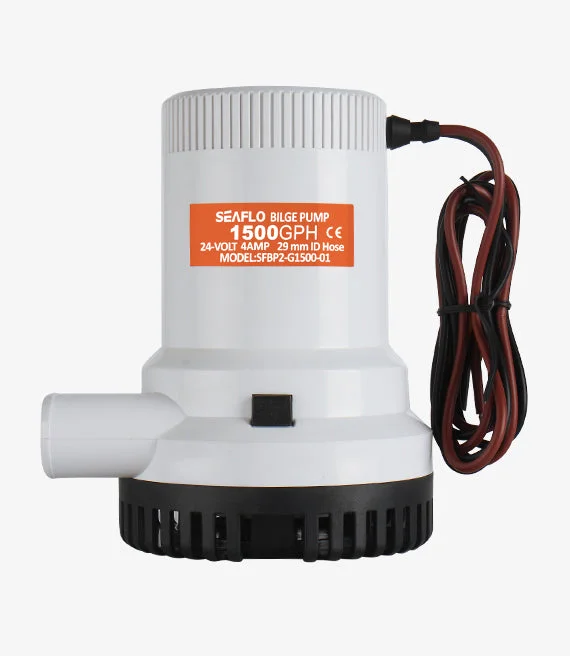

01 Series 1500GPH Seaflo Bilge Pump
Voltage：24V
Flow Rate：1500 GPH
Outlet Dia：1-1/8″ (29mm)
SEAFLO non-automatic 1500GPH bilge pumps offer standard action activated by a panel or float switch. Small size, high efficiency, low current (low cost switching power supply supporting).Removable strainer for easy replacement or in the event that the pump becomes clogged with debris. Available for DC 12 Voltage & 24 Voltage.
MORE FEATURES & BENEFITS
•CE, RoHS, ISO 8846, ISO 8849 standards
•Traditional operation by switch or float switch
•Entirely Submersible
•Run dry capable for workloads
•Stainless steel shaft
•Snap-off strainer base for easy maintenance
•Pump and switch are stand alone products
•Sealed efficient, long life motors, quiet operation
•Anti-Airlock protection
•Exclusive moisture tight seals
•Marine grade blocked wiring
•2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate |
Voltage |
Current |
Max Draw |
Wire Lead |
| SFBP1-G1500-01 | 1500 GPH | 12 V | 8.0 A | 12.0 A | 1m /3.0′ |
| SFBP2-G1500-01 | 1500 GPH | 24 V | 4.0 A | 6.9 A | 1m /3.0′ |
|
12V |
24V |
||||||
|
Current(A) |
Flow |
Head(M) |
Current(A) |
Flow |
Head(M) |
||
|
GPH |
LPH |
GPH |
LPH |
||||
| 5.8 | 1426 | 5396 | 0 | 3.13 | 1407 | 5324 | 0 |
| 6.33 | 1255 | 4749 | 0.5 | 3.45 | 1211 | 4583 | 0.5 |
| 6.95 | 888 | 3360 | 1 | 4.15 | 865 | 3273 | 1 |
| 7.25 | 745 | 2819 | 1.5 | 4.77 | 724 | 2740 | 1.5 |
| 8.05 | 589 | 2229 | 2 | 5.03 | 577 | 2184 | 2 |
| 9.85 | 321 | 1215 | 2.5 | 5.58 | 305 | 1154 | 2.5 |
| 10.42 | 201 | 761 | 3 | 6.15 | 188 | 711 | 3 |
| 11.62 | 76 |
