Description

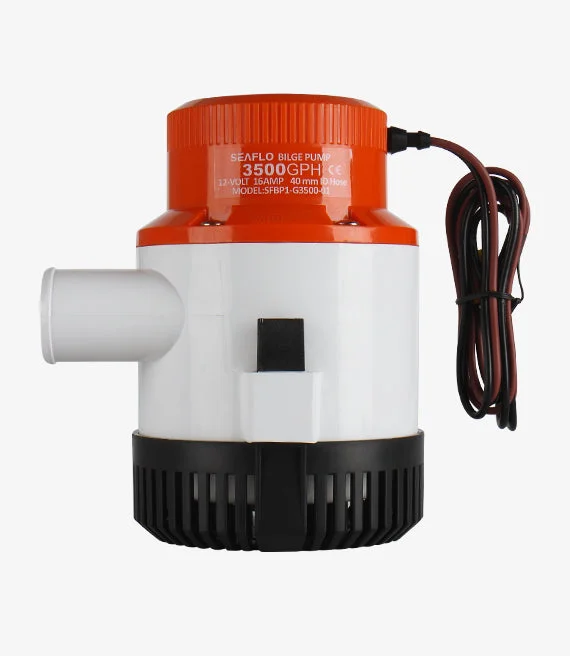

01 Series 3500GPH Seaflo Bilge Pump
24v bilge pump，boat bilge pump，marine pump
Voltage：12V
Flow Rate：3500 GPH
Outlet Dia：1-1/2″ (40mm)
Application Scenarios：Marine
SEAFLO 12v Boat Marine Plumbing Electric Bilge Pumps ,also is non-automatic 3500GPH bilge pumps with high efficiency.,heavy duty motors, offer high capacity output. Very powerful pump. Works great and drains pretty fastQuick release strainer for easy maintenance,.Apply for water sampling, high-volume liquid transfer, low-noise continuous workplace; Large aquarium, small swimming pool, water reservoirs, fountains and many other occasions
MORE FEATURES & BENEFITS
•CE, RoHS, ISO 8846, ISO 8849 standards
•Traditional operation by switch or float switch
•Pump and switch are stand alone products
•Entirely Submersible
•Snap-off strainer base for easy maintenance
•Sealed efficient, long life motors, quiet operation
•Anti-Airlock protection
•Exclusive moisture tight seals
•Marine grade blocked wiring
•18 AWG, 1 m long leads
•2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate |
Voltage |
Current |
Max Draw |
Wire Lead |
| SFBP1-G3500-01 | 3500 GPH | 12 V | 16.0 A | 25.0 A | 3′ (1 m) |
| SFBP2-G3500-01 | 3500 GPH | 24 V | 8.0 A | 12.5 A | 3′ (1 m) |
|
12V |
|||
|
Current(A) |
Flow |
Head(M) |
|
|
GPH |
LPH |
||
|
19.7 |
2872 |
10868 |
0 |
|
20.4 |
2556 |
9672 |
1 |
|
21.1 |
1933 |
7315 |
2 |
|
21.9 |
1406 |
5321 |
3 |
|
22.8 |
844 |
3194 |
4 |
|
23.6 |
631 |
2388 |
5 |
|
24.4 |
255 |
965 |
6 |
|
25 |
0 |
0 |
7 |
SHIPPING INFORMATION
|
Unit Weight |
4.63 lbs (2.1 kg) |
|
Selling Unit Size (L x W x H) |
6.42″ x 6.10″ x 9.25″ (16.3 x 15.5 x 23.5 cm) |
|
Selling Unit Weight |
5.22 lbs ( 2.37 kg) |
|
Master Carton Size (L x W x H) |
23.03″ x 13.35″ x 8.70″ (58.5 x 33.9 x 22.1 cm) |
|
Master Carton Qty |
8 pcs |
|
Master Carton Weight |
41.89 lbs (19 kg) |
|
Master Carton Volume |
0.044 m³ |
For additional info, click below:
Manual Download
