Description

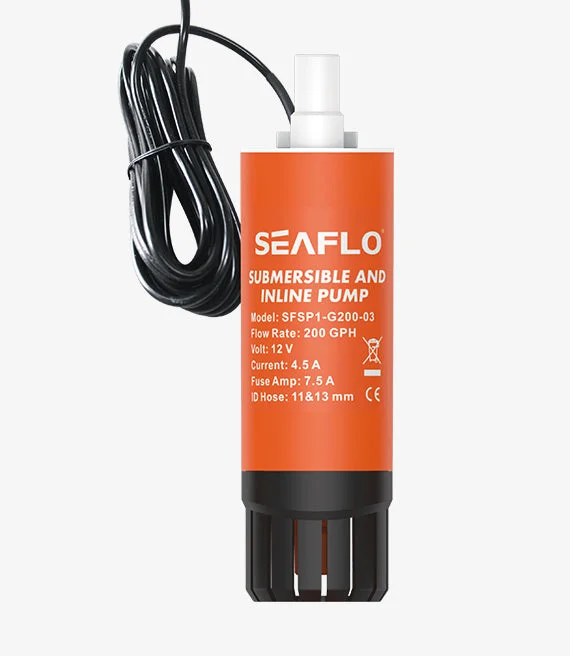

200GPH Submersible and Inline Pump
Submersible and Inline Pump，mini Submersible pump
Voltage：12V
Flow Rate：200GPH
Outlet Dia：1/2″ / 3/8″
Application Scenarios：Marine , RV
SEAFLO DC 12 voltage inline submersible and inline pump is easy to install and carry. Also, the pump is able to pump fresh water and sea water. With long life and quiet perform motor, allows it to work in an quiet environment. The food grade material allows it to work with wide range of application.
MORE FEATURES & BENEFITS
•Able to pump 80 ℃ sea water
•Able to run about 20 minutes
•Portable to carry on
•Easy installation
•Intermittent duty
•1m long Leads
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Head | Wire Lead |
| SFSP1-G200-03B | 200 GPH | 12 V | 2.6 A | 4.0 A | 16.4′ (5 m) | 3′ (1 m) |
|
12V |
||
|
Current(A) |
Flow(GPH) |
Head(M) |
|
2.7 |
187 |
0 |
|
3.1 |
152 |
1 |
|
3.3 |
103 |
2 |
|
3.6 |
84 |
3 |
|
3.84 |
46 |
4 |
|
4 |
0 |
5 |
SHIPPING INFORMATION
|
Unit Weight |
0.66 lbs（0.30 kg） |
|
Selling Unit Size (L x W x H) |
11.42 x 8.27 x 0.28″ （29 x 21 x 0.7 cm） |
|
Selling Unit Weight |
0.79 lbs（0.36 kg） |
|
Master Carton Size (L x W x H) |
20.67″ x 11.8 “x 10.43” (52.5 x 30 x 26.5cm) |
|
Master Carton Qty |
20 pcs |
|
Master Carton Weight |
19.18 lbs (8.7 kg) |
|
Master Carton Volume |
0.042 m³ |
