Description

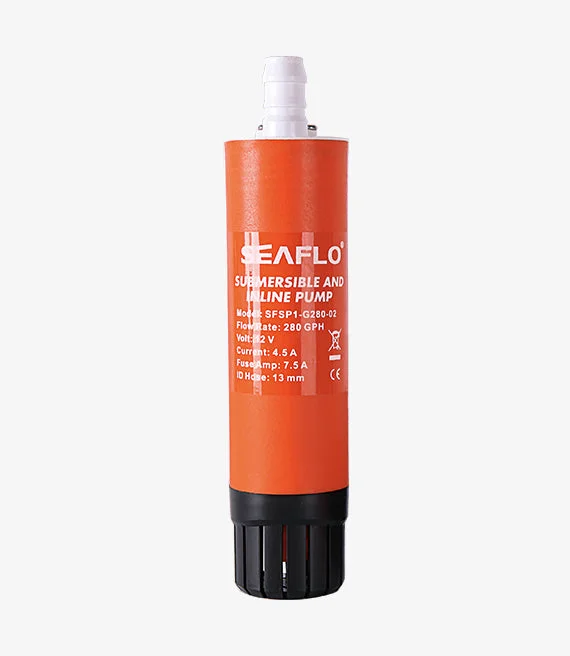

280GPH Submersible and Inline Pump
Submersible and Inline Pump，mini Submersible pump
Voltage：12V
Flow Rate：280GPH
Outlet Dia：1/2″ (12mm)
Application Scenarios：Marine , RV
SEAFLO 12v 280GPH?inline submersible and inline pump is easy to install and carry. Also, the pump is able to pump seawater and diesel. With long life and quiet perform motor, allows it to work in an quiet environment. The food grade material allows it to work with wide range of application.
MORE FEATURES & BENEFITS
•Able to pump 40°C diesel, 80°C sea water
•Able to run about 20 minutes
•Portable to carry on
•Easy installation
•Intermittent duty
•“A” refers to 5m leads with clip, “B” refers to 1m leads
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Current | Max Draw | Head | Wire Lead |
|
SFSP1-G280-02A |
12 V |
4.0 A | 7.5 A |
19.7′ (6 m) |
16′ (5 m) |
|
SFSP2-G280-02B |
24 V |
4.4 A | 7.5 A |
19.7′ (6 m) |
3′ (1 m) |
SFSP-G280-02A
|
12V |
||
|
Current(A) |
Flow(GPH) |
Head(M) |
|
4 |
266 |
0 |
|
4.62 |
226 |
1 |
|
5.28 |
175 |
2 |
|
5.88 |
133 |
3 |
|
6.45 |
108 |
4 |
|
6.86 |
66 |
5 |
|
7.5 |
0 |
6 |
SFSP-G280-02B
|
12V |
||
|
Current(A) |
Flow(GPH) |
Head(M) |
|
4.4 |
248 |
0 |
|
4.86 |
201 |
1 |
|
5.23 |
155 |
2 |
|
5.86 |
123 |
3 |
For additional info, click below:
Manual Download
