Description

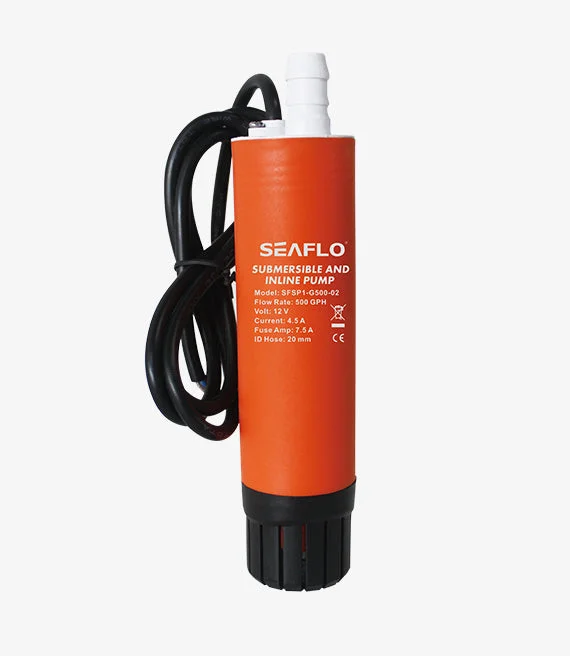

500GPH Submersible and Inline Pump
Submersible and Inline Pump，mini Submersible pump
Voltage：12V
Flow Rate：500GPH
Outlet Dia：3/4″ (19mm)
Application Scenarios：Marine , RV
SEAFLO 500gph 12v inline submersible and inline pump is easy to install and carry. Also, the pump is able to pump seawater and diesel. With long life and quiet perform motor, allows it to work in an quiet environment. The food grade material allows it to work with wide range of application
MORE FEATURES & BENEFITS
•Able to pump 40°C diesel, 80°C sea water
•Able to run about 20 minutes
•Portable to carry on
•Easy installation
•Intermittent duty
•“A” refers to 5m leads with clip, “B” refers to 1m leads
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Head | Wire Lead |
| SFSP1-G500-02A | 500 GPH | 12 V | 4.5 A | 7.5 A | 23′ (7 m) | 16′ (5 m) |
| SFSP2-G500-02B | 500 GPH | 24 V | 4.6 A | 7.5 A | 23′ (7 m) | 3.0′ (1 m) |
SFSP-G500-02A
|
12V |
||
|
Current(A) |
Flow(GPH) |
Head(M) |
|
4.5 |
492 |
0 |
|
4.83 |
399 |
1 |
|
5.12 |
379 |
2 |
|
5.49 |
318 |
3 |
|
5.86 |
254 |
4 |
|
6.15 |
168 |
5 |
|
6.85 |
32 |
6 |
|
7.5 |
0 |
7 |
SFSP-G500-02B
|
12V |
||
|
Current(A) |
Flow(GPH) |
Head(M) |
|
4.6 |
445 |
0 |
|
4.82 |
360 |
1 |
|
5.23 |
For additional info, click below:
Manual Download
