Description

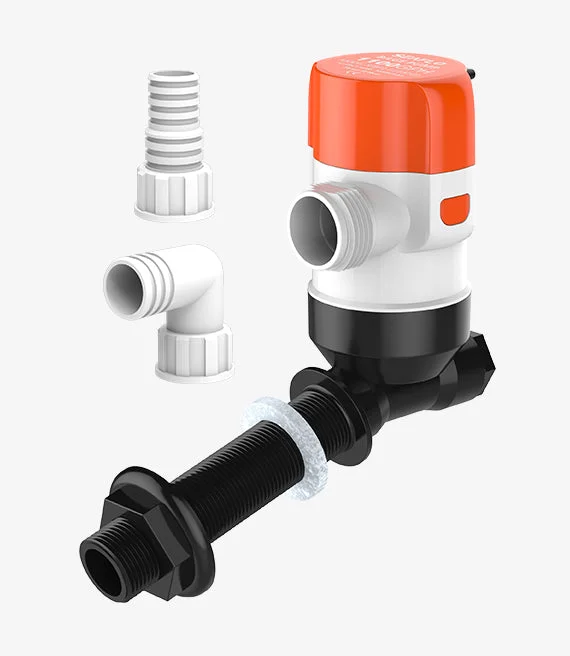

13E SERIES 1100GPH LIVEWELL/BAITWELL PUMPS
LIVEWELL/BAITWELL Pumps ，Aerator pump
Voltage：12V
Flow Rate：1100 GPH
Outlet Dia：1″ (25mm) 1 1/8″ (29mm)
Application Scenarios：Marine
Motor：Cartridge Pump Replacement Motors(sold separately)
This latest SEAFLO baitwell pump is built for the serious angler. Our pumps fill your livewell tank with clean, oxygenated water to keep your catch fresh. Our cartridge design allows you to access the motor and the impeller without the need to re plumb your system. Pumps offer a choice of straight or 90 degree ports, nut and washers to suit your installation requirements. New innovative split quick-connect joint design removes and installs in seconds! Change pump never been so easy. No need to disconnect base or plumbing when replacing pump, which can meet the needs of most users. Just replace the motor that is all.
MORE FEATURES & BENEFITS
•Pump housing can rotate 360 degrees to allow positioning of the discharge outlet
•Discharge nozzle can be rotated 360 degrees for optimal installation
•Dual port fitting for optional washdown pump
•Quick one hand “push button” motor cartridge removal system
•Includes removable discharge straight and elbow fittings
•CE, RoHS, ISO 8846, ISO 8849 standards
•Anti-Airlock protection
STANDARD PUMP CONFIGURATIONS
|
Model |
Motor Model |
Flow rate |
Volts |
Current |
Head |
|
SFBP1-G1100-13E |
SFMA1-G1100-13A |
1100GPH |
12V |
4.0A |
4.0m/12.0′ |
|
SFBP2-G1100-13E |
SFMA2-G1100-13A |
1100GPH |
24V |
2.5A |
4.0m/12.0′ |
SHIPPING INFORMATION
|
Unit Weight |
1.21 lbs (0.55 kg) |
|
Selling Unit Size (L x W x H) |
7.01″ x 2.72″ x 6.69″ (17.8 x 6.9 x 17 cm) |
|
Selling Unit Weight |
1.32lbs (0.6 kg) |
|
Master Carton Size (L x W x H) |
17.72″ x 17.32″ x 18.9″ (45 x 44 x 48 cm) |
|
Master Carton Qty |
24 pcs |
|
Master Carton Weight |
35.27lbs（16 kg） |
|
Master Carton Volume |
0.095 m³ |
