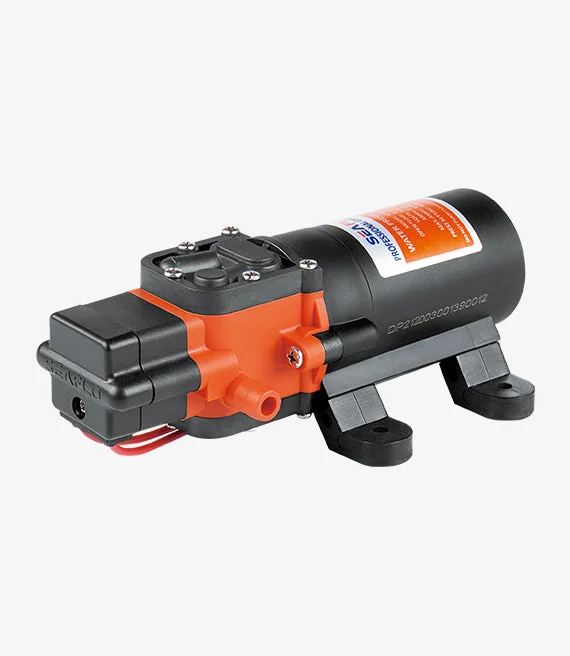

SEAFLO Pressure Pump 21 Series 12V 1.0 gpm 40 psi

Description

21 Series DC Diaphragm Pump

12v water pump,mini water pump,diaphragm booster pump

Voltage：12V

Open Flow：1.0-1.2GPM / 3.8-4.3LPM

Shut-off Pressure：35-70PSI / 2.4-4.8BAR

Priming Capabilities：4 feet (1.2 m) suction lift

Max Recommended Temperature：140° F (60° C）Max.

Material：EPDM(Valves) / Santoprene(Diaphragm)

Ports：3/8″ Barb (or Custom O-Ring)

The 21-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 21-series of diaphragm pumps are self-priming and can be run dry without harm. It provides up to 1.2 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.

MORE FEATURES & BENEFITS

• Capable of supplying 1-2 fixtures

• Compact design

• On-demand pressure switch

• Adjustable pressure setting

• Can run dry

• Quiet operation

• Ignition protected

• Intermittent duty

• Industry standard mounting pattern

• 18 AWG, 13″ (33 cm) long Leads

• 2 Year Warranty

• Meets or exceeds RoHS, SGS, and ISO standards

STANDARD PUMP CONFIGURATIONS

1.0GPM / 40PSI

1.1GPM / 70PSI
