Description

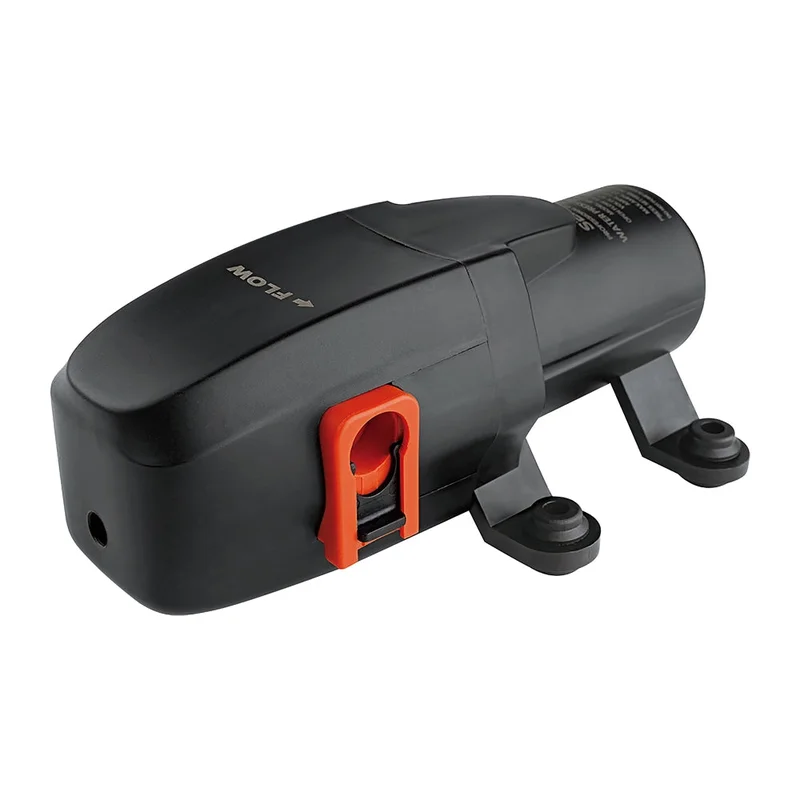

23A Series Automatic Demand Diaphragm Pump
Automatic Diaphragm Pump，mini water pump，12v water pump
Voltage：12V
Open Flow：0.5-1.5GPM / 1.9-5.6LPM
Shut-off Pressure：40-70PSI / 2.8-4.8BAR
Priming Capabilities：5 feet (1.5 m) suction lift
Max Recommended Temperature：140° F (60° C）Max.
Material：EPDM(Valves) / Santoprene(Diaphragm)
Ports：5/8″ quick attach
SEAFLO 23 Series diaphragm pump is design for wider applications of liquid transfer, pressurization and circulation. 23 Series is compact design but flow rate is up to 1.5GPM (5.6LPM), and pressure is up to 120PSI (8.2Bar). 23 Series supports flexible customization. Firstly its control type can choose from demand, by pass, no switch, manual switch and any combination of these types. Secondly, with compatible fixtures, 23 series can easy connect to any industrial port. Thirdly, 23 series can be customized to use for water, chemicals and food grade.
MORE FEATURES & BENEFITS
• Open flow up to 1.5gpm/5.6lpm
• Dry run capability
• Max Self-priming up to 5 feet/1.5m
• Waterproof grade IP54 with extra cover
• On-demand long life pressure switch
• Configurable reflux function
• Adapt to a variety of scenarios
• Multiple connector options
• By pass technology reduces cycling
• Ignition protected, CE, RoHS
STANDARD PUMP CONFIGURATIONS
|
Model |
Voltage |
Open Flow |
Max Draw |
Shut-off Pressure |
| SFDP1-005-070-23A | 12V | 0.5/1.9 | 1.8A | 70/4.8 |
| SFDP2-005-070-23A | 24V | 0.5/1.9 | 1.0A | 70/4.8 |
| SFDP1-007-070-23A | 12V | 0.7/2.6 | 2.5A | 70/4.8 |
| SFDP2-007-070-23A | 24V | 0.7/2.6 | 1.2A | 70/4.8 |
| SFDP1-010-040-23A | 12V | 1.0/3.8 | 3.8A | 40/2.8 |
| SFDP2-010-040-23A | 24V | 1.0/3.8 | 2.0A | 40/2.8 |
| SFDP1-012-040-23A | 12V | 1.2/4.3 | 4.2A | 40/2.8 |
| SFDP2-012-040-23A | 24V | 1.2/4.3 | 2.2A | 40/2.8 |
| SFDP1-015-040-23A | 12V | 1.5/5.6 | 4.5A | 40/2.8 |
| SFDP2-015-040-23A | 24V | 1.5/5.6 | 2.5A | 40/2.8 |
SHIPPING INFORMATION
|
Unit Weight |
1.32 lbs（0.6 kg） |
|
Selling Unit Size (L x W x H) |
7.09″x 4.13 “x 2.76” （18.0 x 10.5 x 7 cm） |
|
Selling Unit Weight |
1.54 lbs（0.7 kg） |
|
Master Carton Size (L x W x H) |
15.16″x 13.19 “x 14.96” （38.5 x 33.5 x 38 cm） |
|
Master Carton Qty |
30 pcs |
|
Master Carton Weight |
45.19 lbs（20.5 kg） |
|
Master Carton Volume |
0.049 m³ |
