Description

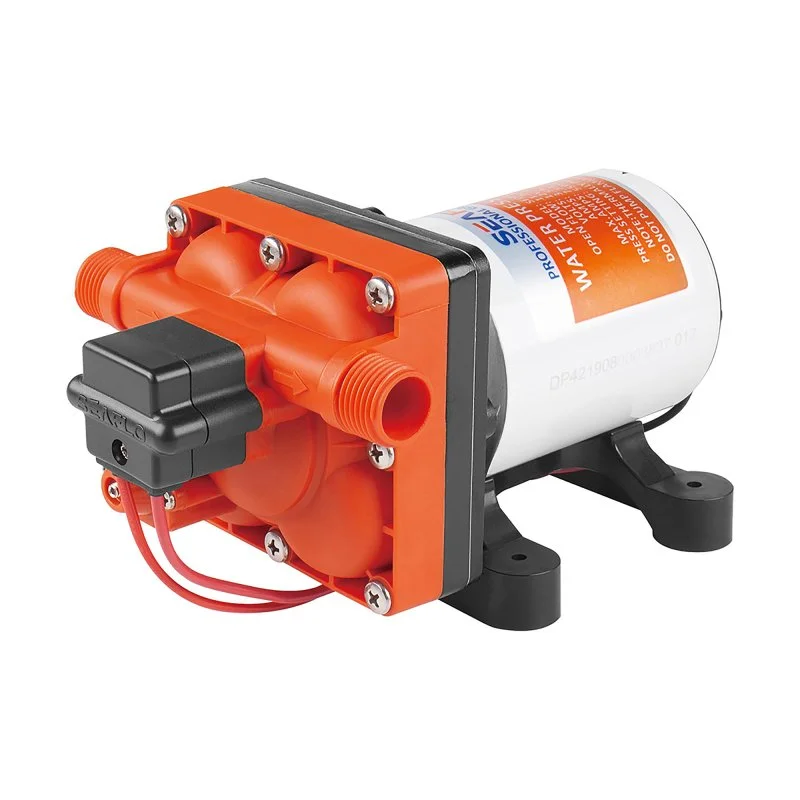

42 Series Diaphragm Pump(Short)
12v water pump，RV water pump，dc water pump，marine pump
Voltage：12V
Open Flow：3.0GPM / 11.3LPM
Shut-off Pressure：55PSI / 3.8BAR
Priming Capabilities：6 feet (1.8 m) suction lift
Max Recommended Temperature：140° F (60° C）Max.
Material：EPDM(Valves) / Santoprene(Diaphragm)
Ports：1/2″-14 MNPT
Meet our newest addition to our diaphragm pumps: the 42 series. It retains the raw power and pressure of its predecessors, but also can adapt to situations where huge flow is not needed. Compact but capable, it is a great fit for tight spaces. It also may be configured with different inlet types, each with their own unique fittings, to be sure that it fits any application you can find.
MORE FEATURES & BENEFITS
•Continuous duty
• Up to 3.0 GPM
• Self priming
• Run dry safe
• Quiet operation
• On-demand use
• Industry Standard mounting pattern
• Completely rubber mounting-base
• Internal bypass technology reduces cycling
• 16 AWG, 9.4″(23.8 cm) long leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow |
Max Draw |
Shut-off Pressure |
| SFDP1-030-055-42 | 12V | 3.0 / 11.3 | 7.00 A | 55 / 3.8 |
| SFDP2-030-055-42 | 24V | 3.0 / 11.3 | 3.37 A | 55 / 3.8 |
| SFDPA1-030-055-42 | 115V | 3.0 / 11.3 | 1.10 A | 55 / 3.8 |
| SFDPA2-030-055-42 | 220V | 3.0 / 11.3 | 0.50 A | 55 / 3.8 |
3.0GPM / 55PSI
|
PRESSURE |
12V |
24V |
|||||
|
FLOW |
CURRENT |
FLOW |
CURRENT |
||||
|
PSI |
BAR |
GPM |
LPM |
AMPS |
GPM |
LPM |
AMPS |
| 0 | 0 | 2.85 | 10.8 | 3.9 | 2.85 | 10.8 | 1.15 |
| 10 | 0.69 | 2.27 | 8.6 | 4.5 | 2.27 | 8.60 | 1.84 |
| 20 | 1.38 | 1.96 | 7.4 | 5.1 | 1.90 | 7.20 | 2.24 |
| 30 | 2.07 | 1.59 | 6.0 | 5.8 | 1.59 | 6.00 | 2.64 |
| 40 | 2.72 | 1.32 | 5.0 | 6.3 | 1.37 | 5.20 | 2.97 |
| 50 | 3.45 | 1.11 | 4.2 | 6.7 | 1.16 | 4.40 | 3.28 |
| 55 | 3.8 | 0 | 0 | 7.0 | 0 | 0 | 3.37 |
For additional info, click below:
Manual Download
