Description
33 Series Water Pressure System
Water pressure systems，Water Booster Pump，booster pump system
Voltage：12V
Open Flow：3.0GPM / 11.3LPM
Tank Volume：0.75L
Pressure Off：45PSI / 3.1BAR
Pressure On：35PSI / 2.4BAR
Inlet/outlet size：1/2″ MNPT
Material：EPDM(Valves) / Santoprene(Diaphragm)

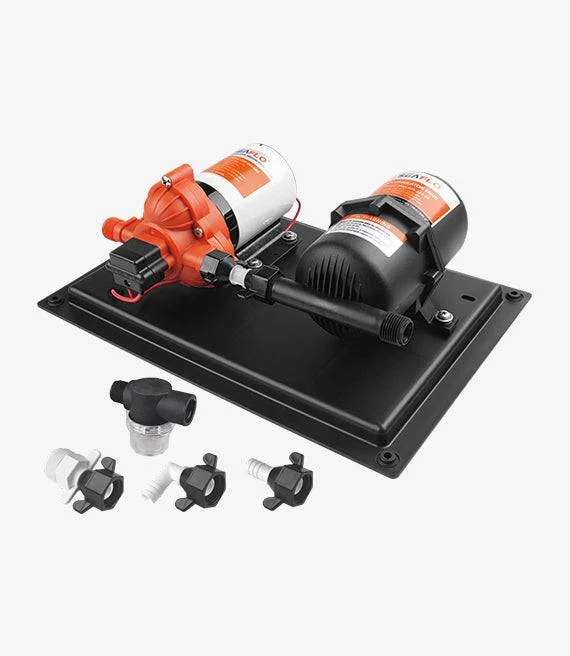

A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 3 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a?Plate mounted board. Serves 3 or more 1/2″ (13mm) outlets.
MORE FEATURES & BENEFITS
• Powerful 3.0 gallons/11.3 litres per minute of flow
• Ultra quiet with constant and steady flow
• Superior self-priming capabilities
• Powerful enough to supply up to 3 fixtures
• Built-in adjustable pressure switch
• Easy pre-assembled installation
• Heavy-duty, corrosion resistant motor
• Capable of being run dry without damage
• Can be fitted to new or existing systems
STANDARD PUMP CONFIGURATIONS
| Model | Tank Volume | Voltage | Open Flow （GPM/LPM） |
Max Draw |
Pressure On (PSI/BAR) |
Pressure Off （PSI/BAR) |
| SFWSK1-030-045-002 | 0.75 L | 12V | 3.0 / 11.3 | 11.0A | 35 / 2.4 | 45 / 3.1 |
| SFWSK2-030-045-002 | 0.75 L | 24V | 3.0 / 11.3 | 5.5A | 35 / 2.4 | 45 / 3.1 |
SHIPPING INFORMATION
|
Unit Weight |
5.95 lbs（2.70 kg） |
|
Selling Unit Size (L x W x H) |
14.96″x 10.55 “x 6.10” （38.0 x 26.8 x 15.5 cm） |
|
Selling Unit Weight |
7.05 lbs（3.20 kg） |
|
Master Carton Size (L x W x H) |
22.05″x 15.63 “x 15.16” (56.0 x 39.7 x 38.5 cm) |
|
Master Carton Qty |
4 pcs |
|
Master Carton Weight |
31.97 lbs (14.5 kg) |
|
Master Carton Volume |
0.086 m³ |
For additional info, click below:
Manual Download
