Description
51 Series Water Pressure System
booster pump system，Water Pressure System
Voltage：24V
Open Flow：5.5GPM / 20.8LPM
Tank Volume：1.0L
Pressure Off：60PSI / 4.2BAR
Pressure On：50PSI / 3.4BAR
Inlet/outlet size：1/2″ MNPT
Material：EPDM(Valves) / Santoprene(Diaphragm)

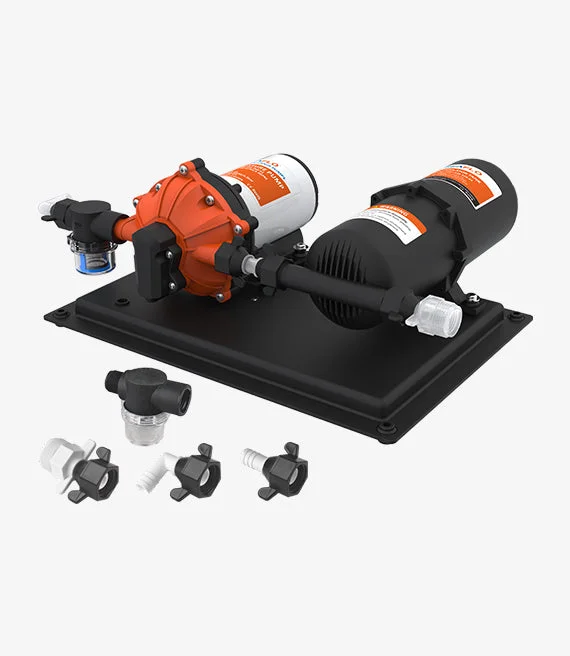

A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 5 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a Plate mounted board. Serves 3 or more 1/2″ (13mm) outlets.
MORE FEATURES & BENEFITS
• Powerful 5.5 gallons/20.8 litres per minute of flow
• Ultra quiet with constant and steady flow
• Superior self-priming capabilities
• Powerful enough to supply up to 5 fixtures
• Built-in adjustable pressure switch
• Easy pre-assembled installation
• Heavy-duty, corrosion resistant motor
• Capable of being run dry without damage
• Can be fitted to new or existing systems
STANDARD PUMP CONFIGURATIONS
| Model | Tank Volume | Voltage | Open Flow （GPM/LPM） |
Max Draw |
Pressure On (PSI/BAR) |
Pressure Off （PSI/BAR) |
| SFWSK1-055-060-003 NEW | 1.0 L | 12V | 5.5 / 20.8 | 18.0A | 50 / 3.4 | 60 / 4.2 |
| SFWSK2-055-060-003 NEW | 1.0 L | 24V | 5.5 / 20.8 | 9.0A | 50 / 3.4 | 60 / 4.2 |
SHIPPING INFORMATION
|
Unit Weight |
7.72 lbs（3.50 kg） |
|
Selling Unit Size (L x W x H) |
16.14″x 15.35 “x 6.89” (41.0 x 39.0 x 17.5 cm) |
|
Selling Unit Weight |
9.70 lbs（4.40 kg） |
|
Master Carton Size (L x W x H) |
16.14″x 16.93 “x 15.16” (41.0 x 43.0 x 38.5 cm) |
|
Master Carton Qty |
2 pcs |
|
Master Carton Weight |
20.94 lbs (9.5 kg) |
|
Master Carton Volume |
0.068 m³ |
