Description
8L Accumulator Pressure Boost System
Accumulator Pressure Boost System，Water pressure systems，Water Booster Pump，booster pump system
Voltage：12V
Open Flow：3.0-5.0GPM / 11.3-18.9LPM
Tank Volume：8L
Pressure Off：60PSI / 4.2BAR
Pressure On：40PSI / 2.8BAR
Inlet/outlet size：1/2″ barb
Material：EPDM(Valves) / Santoprene(Diaphragm)

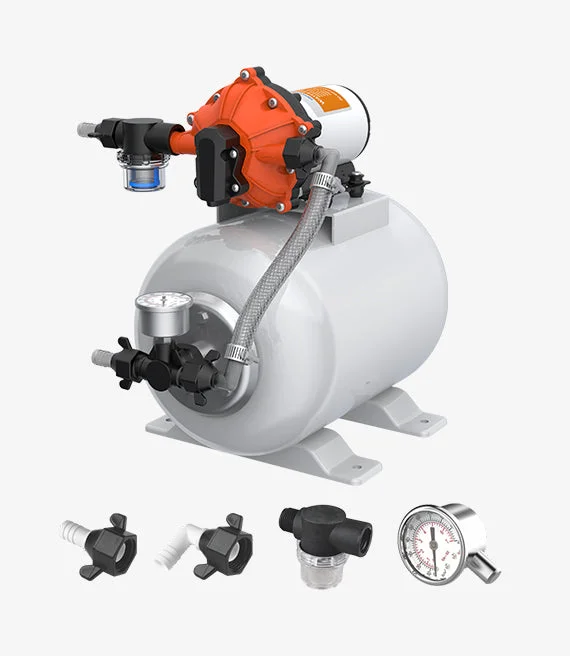

A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 5 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a rubber mounted board. Serves 3 or more 1/2″ (13mm) outlets.
MORE FEATURES & BENEFITS
• Smoother flow, quieter water systems.
• Longer pump life, lower battery drain.
• Self-priming up to 6 feet (1.8 m).
• Five Chamber diaphragms for smooth and quiet operation
• Can be installed vertically or horizontally
• Maintenance free potable water quality accumulator tank
• Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
• 16 AWG, 4.5″ long Leads
STANDARD PUMP CONFIGURATIONS
| Model | Tank Volume | Voltage | Open Flow （GPM/LPM） |
Max Draw |
Pressure On (PSI/BAR) |
Pressure Off （PSI/BAR) |
| SFWSK1-030-060-0021 NEW | 8 L | 12V | 3.0 / 11.3 | 10.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK2-030-060-0021 NEW | 8 L | 24V | 3.0 / 11.3 | 5.5A | 40 / 2.8 | 60 / 4.2 |
| SFWSK1-040-060-0021 NEW | 8 L | 12V | 4.0 / 15.0 | 13.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK2-040-060-0021 NEW | 8 L | 24V | 4.0 / 15.0 | 7.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK1-050-060-0021 NEW | 8 L | 12V | 5.0 / 18.9 | 17.0A | 40 / 2.8 | 60 / 4.2 |
| SFWSK2-050-060-0021 NEW | 8 L | 24V | 5.0 / 18.9 | 9.0A | 40 / 2.8 | 60 / 4.2 |
SHIPPING INFORMATION
|
Unit Weight |
12.02 lbs（5.45 kg） |
|
Selling Unit Size (L x W x H) |
16.61″x 11.30 “x 16.14” （42.2 x 28.7 x 41 cm） |
|
Selling Unit Weight |
14.33 lbs（6.5 kg） |
|
Master Carton Size (L x W x H) |
16.61″x 11.30 “x 16.14” （42.2 x 28.7 x 41 cm） |
|
Master Carton Qty |
1 pcs |
|
Master Carton Weight |
14.55 lbs（6.6 kg） |
|
Master Carton Volume |
0.05 m³ |
For additional info, click below:
Manual Download
