Description

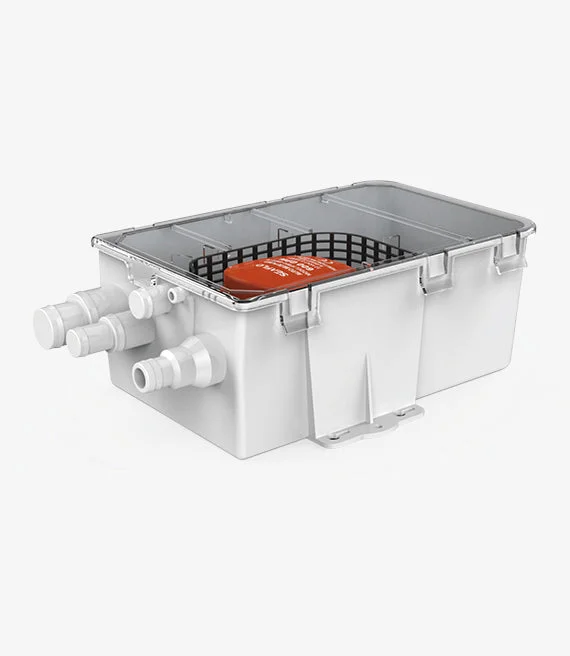

07 Series 750GPH Seaflo Shower Pump System
Shower Pump System，Shower Drain Box， shower Drain Pump
Voltage：24V
Flow Rate：750 GPH
Outlet Dia：3/4″ (19mm)
Application Scenarios：Marine
SEAFLO 750GPH shower sump pump system with multiple inlet to pump shower/sink water overboard or into a holding , full capacity automatic shower sump draining kit. Check valve on outlet prevent water back -in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed.
MORE FEATURES & BENEFITS
•Removable mesh filter allows easy cleaning
•Clear screw-down cover
•Check valve on outlet
•Ignition protected
•Handles waste water from more than one tapping point
•Multiple inlet ports for versatile usage
•Available in 600,750 and 1100 GPH
•Easy installation
•18 AWG, 1 m long Leads
•2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G750-07 | 750 GPH | 12 V | 3.0 A | 5.0 A | 1m /3.0′ |
| SFBP2-G750-07 | 750 GPH | 24 V | 1.6 A | 2.9 A | 1m /3.0′ |
|
12V |
24V |
||||||
|
Current(A) |
Flow |
Head(M) |
Current(A) |
Flow |
Head(M) |
||
|
GPH |
LPH |
GPH |
LPH |
||||
| 2.48 | 672 | 2543 | 0 | 1.3 | 676 | 2558 | 0 |
| 3.21 | 533 | 2017 | 0.5 | 1.6 | 529 | 2002 | 0.5 |
| 3.86 | 402 | 1521 | 1 | 2.05 | 388 | 1468 | 1 |
| 4.2 | 223 | 844 | 1.5 | 2.33 | 189 | 715 | 1.5 |
| 4.62 | 84 | 318 | 2 | 2.53 | 80 | 303 | 2 |
| 5 | 0 | 0 | 2.5 | 2.9 | 0 | 0 | 2.5 |
SHIPPING INFORMATION
|
Unit Pump Weight |
2.69 lbs (1.22 kg) |
|
Selling Unit Size (L x W x H) |
8.66″x 4.72″ x 13.39″ (22 x 12 x 34 cm) |
|
Selling Unit Weight |
3.14 lbs(1.42 kg) |
|
Master Carton Size (L x W x H) |
For additional info, click below:
Manual Download
