Description

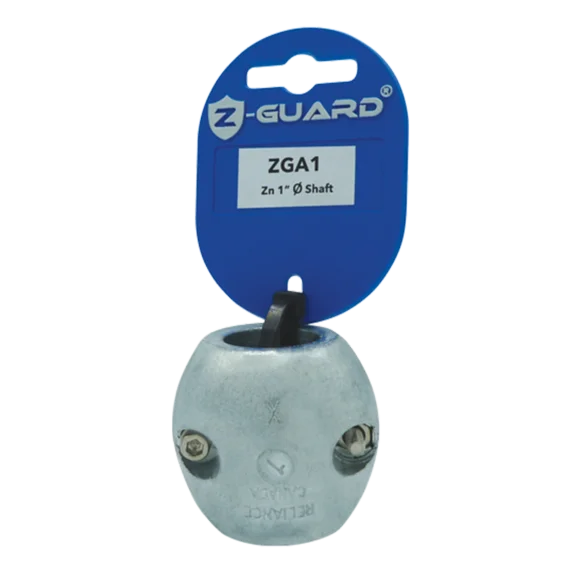

Shaft Globe Anodes:
Shaft Globe Anodes
| Shaft Diameter Size | Anode Diameter | Anode Length | Zinc Weight (kg) | Aluminium Weight (kg) |
| 3/4″ | 54mm (2-1/8″) | 54mm (2-1/8″) | 0.51 | NA |
| 7/8″ | 54mm (2-1/8″) | 54mm (2-1/8″) | 0.47 | NA |
| 1″ | 54mm (2-1/8″) | 54mm (2-1/8″) | 0.45 | 0.17 |
| 1-1/8″ | 54mm (2-1/8″) | 54mm (2-1/8″) | 0.39 | 0.16 |
| 1-1/4″ | 60mm (2-3/8″) | 64mm (2-1/2″) | 0.53 | 0.21 |
| 1-3/8″ | 64mm (2-1/2″) | 64mm (2-1/2″) | 0.77 | 0.25 |
| 1-1/2″ | 64mm (2-1/2″) | 64mm (2-1/2″) | 0.75 | 0.24 |
| 1-3/4″ | 83mm (3-1/4″) | 73mm (2-7/8″) | 1.15 | NA |
| 2″ | 83mm (3-1/4″) | 73mm (2-7/8″) | 0.91 | NA |
| 2-1/4″ | 105mm (4-1/4″) | 95mm (3-3/4″) | 2.74 | NA |
| 2-1/2″ | 105mm (4-1/4″) | 95mm (3-3/4″) | 2.33 | NA |
| 2-3/4″ | 121mm (4-3/4″) | 92mm (3-5/8″) | 3.15 | NA |
| 3″ | 121mm (4-3/4″) | 92mm (3-5/8″) | 2.7 | NA |
| 25mm | 54mm (2-1/8″) | 54mm (2-1/8″) | 0.45 | 0.18 |
| 30mm | 64mm (2-1/2″) | 60mm (2-3/8″) | 0.8 | 0.31 |
| 35mm | 64mm (2-1/2″) | 64mm (2-1/2″) | 0.68 | 0.27 |
| 40mm | 90mm (3-9/16″) | 63mm (2-7/8″) | 2.02 | 0.79 |
| 45mm | 90mm (3-9/16″) | 63mm (2-7/8″) | 1.84 | NA |
| 50mm | 90mm (3-9/16″) | 63mm (2-7/8″) | 1.66 | NA |
| 60mm | 108mm (4-1/4″) | 95mm (3-3/4″) | 2.55 | NA |
