Description

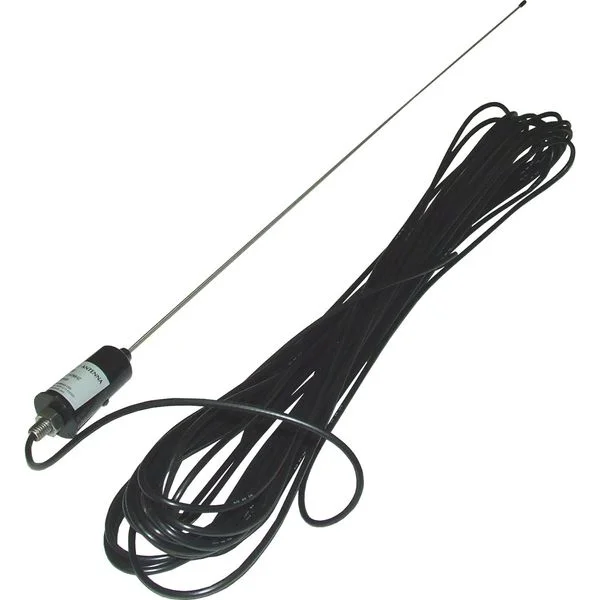

The Shakespeare V-Tronix MD 20 stainless steel whip VHF antenna has been designed to withstand the most rugged punishment.
It is manufactured to the highest standards and quality. All the vulnerable electrical parts are sealed in epoxy resin to resist water ingress.
This Shakespeare antenna is particularly designed for sailing boats, RIBs, powerboats and fishing boats.
Shakespeare boat antennas benefit from low angle techniques that increase signal range and actually reduces power wastage. They insist on high quality and reliability, no matter how rough the seas are.
Stainless Steel Aerial:
– Lightweight.
– Low windage.
– 180mm nylon cranked bracket for masthead mounting.
– Watertight strong construction.
Specifications
| Gain | 3 dB |
| Supplied With | Mounting Bracket |
| Frequency | 156-162MHz |
| Style | Stainless Steel Whip Antenna |
| Suitable For | Fishing Boats|Powerboats|RIBs|Sailboats |
| Antenna Bandwidth | 7MHz |
| Antenna Cable | 20m (65-5/8ft) RG-58 Cable |
| Antenna Max Input Power | 50W |
| Antenna VSWR | Nominally 1.5:1 at 156.8MHz |
| Connector Plug Supplied | PL-259 |
| Frequency | 156-162MHz |
| Brand | Shakespeare |
| Model | MD20 |
| Depth | Nut: 10mm |
| Length | Antenna: 0.9M (3ft), Thread: 22mm |
| Diameter | Base: 40mm, Thread: 12mm |
| Warranty | 2 Years |
More Info/Downloads
Technical Article – Antennas
Manufacturer Part Number: MD20
