Description

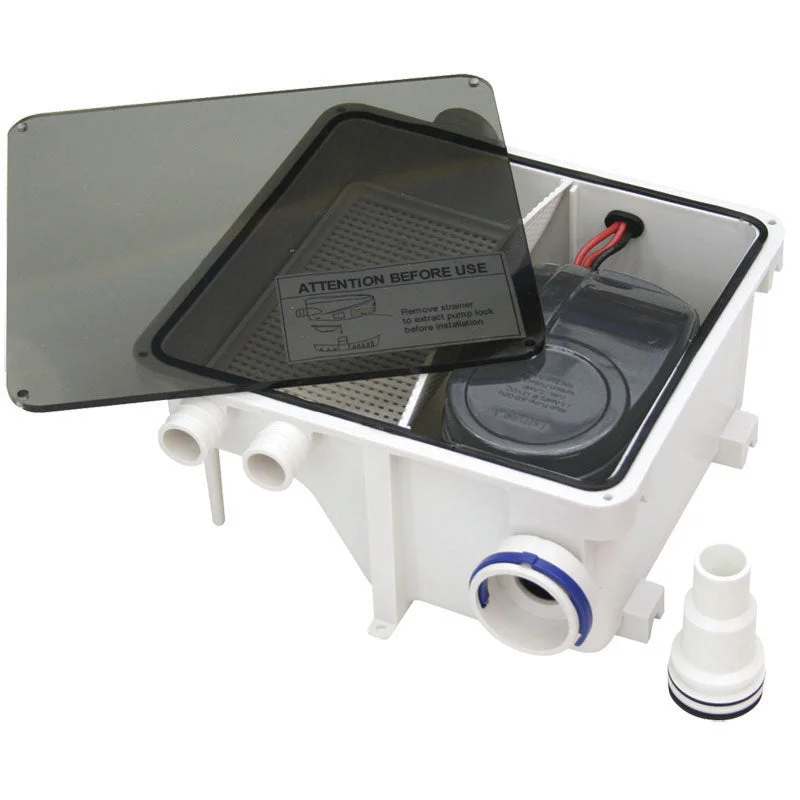

Designed especially for use on boats with built-in sink, shower or tub, the LSU 600 will pump all water out of the drain and into the tank. It is compact and can be mounted either against the floor or against the walls, in which case the two legs can be cut off. It has a built-in automatic bilge pump that will start operating, as soon as the float switch senses water. Additionally, it features a filter, which can be easily serviced by removing the top transparent cover and a non-return valve at the outlet hose. The LSU 600 case is made of resistant polypropylene and the lid of acrylic. Its power consumption is limited to 2,5A at 12V, fuse 4A. The LSU 600 System has 3 inlet hoses (2 of 19,1mm (3/4”) and 1 of 25,4mm (1”)) and 1 outlet hose with non-return valve for hose of 19,1mm (3/4”) and 25,4mm (1”) in diameter.
| Code | Length | Width | Height (cm) | |
|---|---|---|---|---|
| 31349 | Shower sump system unit, Lsu 600, 12V | 210(mm) | 196(mm) | 92(mm) |
More Info/ Document Downloads (Click on links below to Open)
| Shower Sump System Unit |
|---|
| Assembling Instructions Shower Sump System Unit_IT |
