Description

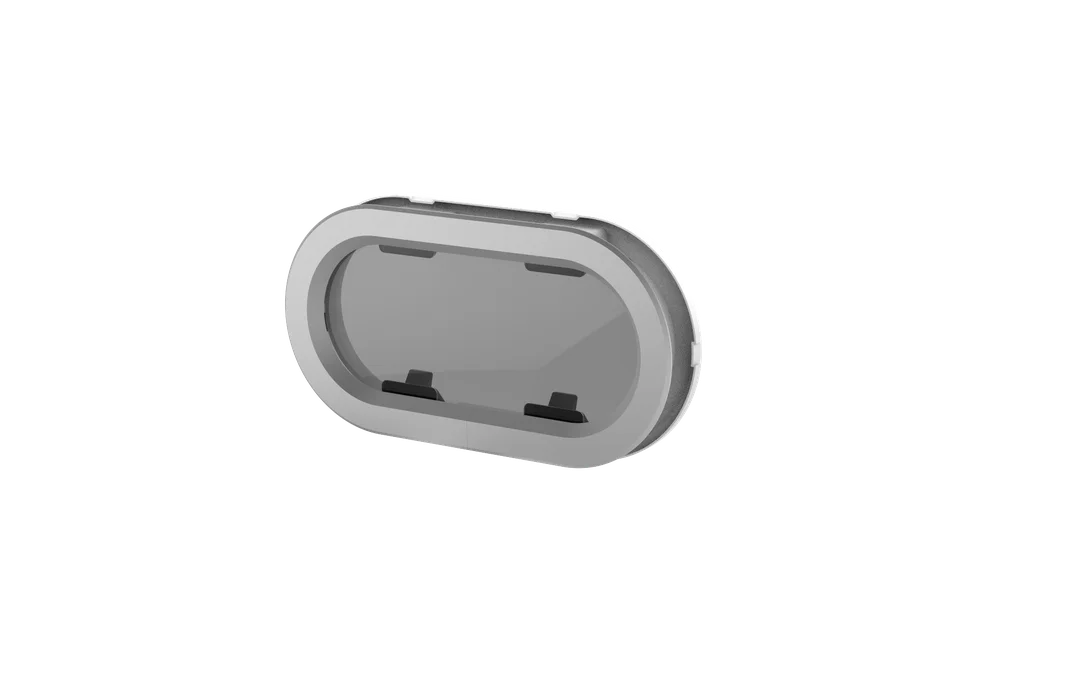

Size 1RE Standard Portlight393180200 by LEWMAR
A perfect match for any hatch in the Lewmar range, the Standard Portlight is stylish, competitively priced and easy to both use and install.
- Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame
- Can be installed with sealant or closed cell PVC tape
- White ABS Plastic Trim
- Supplied complete with flyscreen (except sizes 4L and 4R)
- Full range of spare parts available
Specification:
| Version | Acrylic Colour | Trim Colour | Hatch Weight(kg) | Acrylic Window Thickness(mm) |
|---|---|---|---|---|
| Opening | Smoke Grey | White | 1.3 | 8 |
| Version | Acrylic Colour | Trim Colour | Hatch Weight(lb) | Acrylic Window Thickness(in) |
|---|---|---|---|---|
| Opening | Smoke Grey | White | 2.86 | 5/16 |
| Overall Width X(mm) | Overall Length Y (mm) | Overall Height Z (mm) | Overall Radii R(mm) | Cut-Out Width X1 (mm) | Cut-Out Length Y1 (mm) | Cut-Out Radii R1 (mm) |
|---|---|---|---|---|---|---|
| 191 | 367 | 4 | 95.5 | 171 | 347 | 85.5 |
| Overall Width X(in) | Overall Length Y (in) | Overall Height Z (in) | Overall Radii R(in) | Cut-Out Width X1 (in) | Cut-Out Length Y1 (in) | Cut-Out Radii R1 (in) |
|---|---|---|---|---|---|---|
| 7 1/2 | 14 7/16 | 5/32 | 3 3/4 | 6 3/4 | 13 5/8 | 3 3/8 |
Standard Portlight Fixed – White Trim
