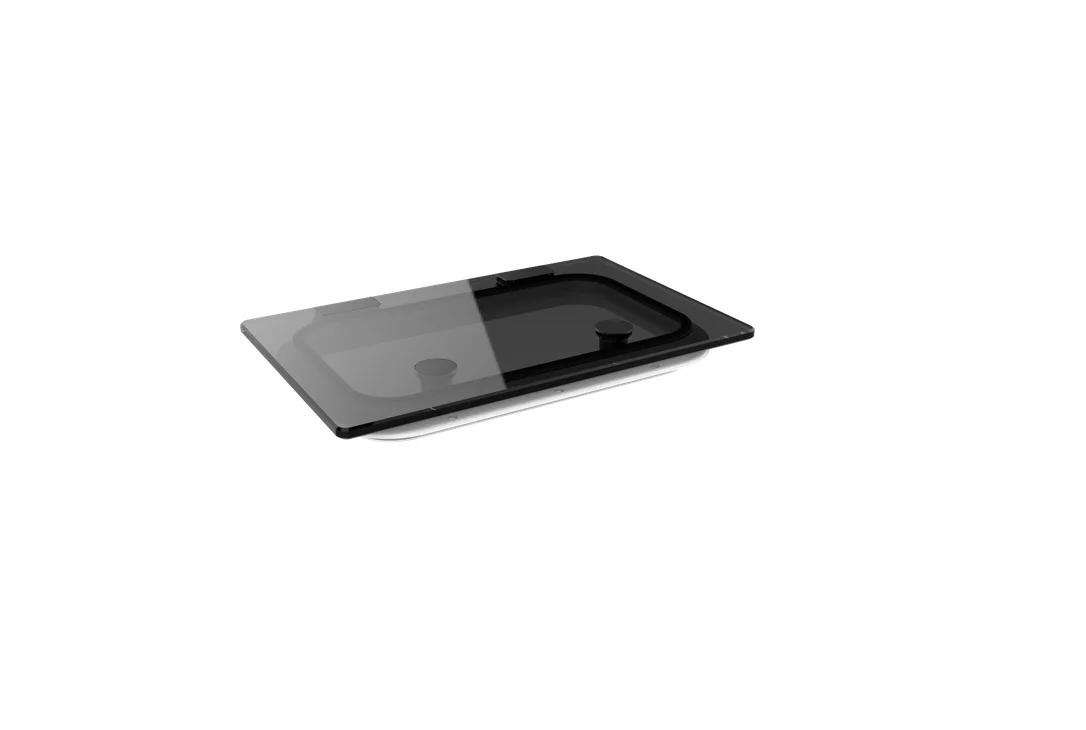

Size 20 Flush 3G Hatch (Standard Colour)399204996 by LEWMAR
This product offers a small profile and a clean aesthetic and with improved manufacturing techniques, the Flush Hatch 3G continues to push the boundary of hatch design and is now seen on a wide range of boats.
Tough, tinted acrylic panel is all that can be seen on deck.
Flush Hatch 3G
■ Lower frame mounted seal
■ Strengthened, extruded aluminium frame hidden discreetly below deck
■ Completely flush fittings
■ Exterior handle available for foredeck use
■ Interchangeable with 2G Flush product
■ Built in locking mechanism
Specification:
| Support System | Lower Frame Flange (mm) | Acrylic Window Thickness (mm) |
|---|---|---|
| Friction Hinge | 15 | 10 |
| Support System | Lower Frame Flange (in) | Acrylic Window Thickness (in) |
|---|---|---|
| Friction Hinge | 9/16 | 3/8 |
| Length X (mm) | Width Y (mm) | Height Z (mm) | Raddii R (mm) | Cut-Out Length X1 (mm) | Cut-Out Length Y1 (mm) | Cut-Out Length R1 (mm) |
|---|---|---|---|---|---|---|
| 417 | 272 | 31 | 10 | 347 | 202 | 42.5 |
| Length X (in) | Width Y (in) | Height Z (in) | Raddii R (in) | Cut-Out Length X1 (in) | Cut-Out Length Y1 (in) | Cut-Out Length R1 (in) |
|---|---|---|---|---|---|---|
| 16 7/16 | 10 11/16 | 1 1/4 | 3/8 | 13 11/16 | 7 15/16 | 1 11/16 |
Flush 2G / 3G fitting guide
Flush 2G / 3G fitting guide
