Description

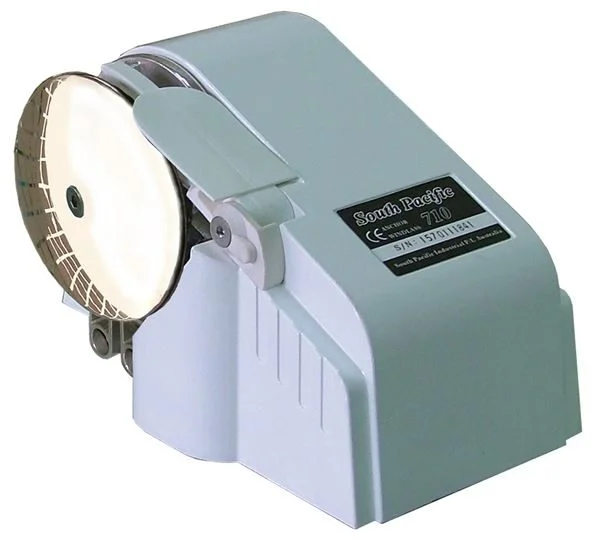

The South Pacific 710HS is designed for smaller size boats from 15ft to 20ft or to handle an anchor up to 6.8kg. This compact windlass is easy to operate and install and is supplied as a complete kit with a switch, circuit breaker, fixing bolts and manual.
Windlass Kit
710HS
2. Direct Control Switch SW-200 (no solenoid required)
3. Circuit Breaker CB-001-30
4. Fixing Bolts
5. Manual & Template
Features:
• Stainless steel gypsy takes both rope and chain
• Efficient DC motor minimises heat
• Stainless steel drive shaft and parts
• A torque limiter absorbs sudden impacts, delivers smoother operation and greater reliability
• Compact one-piece housing ensures water resistance
• Aluminium alloy case with powder coated finish
• Installation is simple with the whole one-piece unit fitting on deck.
Specifications
Power: 300W
Operating Voltage : 12V DC
Max Working Load : 120 kg
Typical Working Load : 20 kg
Retrieval Speed : 17 m/min
Pay-Out Speed : 710H(s) 22 m/min
Current Draw (Typical) : 15 amp
Gearing: Worm Gear
Dimensions (LxWxH) : 230mm x 120mm x 135mm
Weight : 4.6kg
Suit Chain Size : 6mm DIN766
Suit Rope Size : 12mm
Suit Deck Thickness : 3mm~60mm
Two different control systems for South Pacific windlasses
MPN: 710HS(6)
