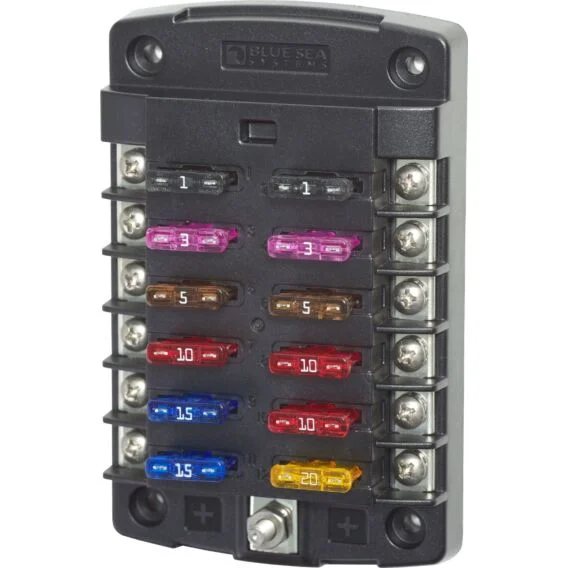

Description
Consolidates branch circuits and in-line fuses
| Specifications | |
|---|---|
| Circuits | 12 |
| Maximum Amperage* | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N·m) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.60lb (0.27 kg) |
*Maximum amperage ratings are dependent on the use of appropriately sized fuses and wires for a given application
