Description

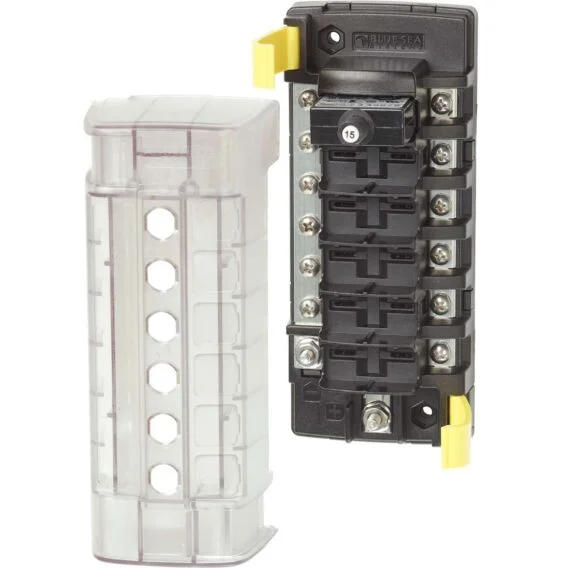

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a
| Specifications | |
|---|---|
| Circuits | 6 |
| Maximum Amperage* | 100A (per block) 32A (per circuit) |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) or #8 Nut |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Source | Common Source |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Mounting Centers | 5.63in (143 mm) |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock Washer |
| Height | 6.69in (169.93 mm) |
| Weight | 0.75lb (0.34 kg) |
*Maximum amperage ratings are dependent on the use of appropriately sized fuses and wires for a given application
