Standard Worm Gear Winches

Description

Dutton-Lainson® worm gear winches for horizontal pulling and vertical lifting applications
• 7″ handle with ergonomic handle grip
• Standard reel automatically stops turning whenever cranking is stopped, locking load in place
• Powder coated copper bronze finish, zinc plated TUFFPLATE® finish on hardware
• Cable or strap models available.

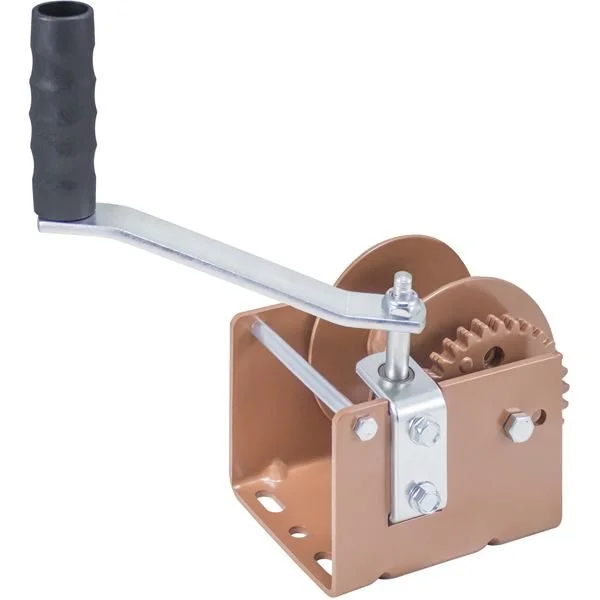

43274 – Worm Gear Winch – WG1500 (Standard Drum) – 1500 lb/681kg

43276 Worm Gear Winch – WG1500SR (Split Reel) – 1500 lb/681kg

Dutton-Lainson® worm gear winch for horizontal pulling and vertical lifting applications
• 1,500 lb capacity
• Split reel allows for simultaneous operation of two lines from opposite directions for greater versatility.
• 7″ handle with ergonomic handle grip
• Split reel automatically stops turning whenever cranking is stopped, locking load in place
• Powder coated copper bronze finish, zinc plated TUFFPLATE® finish on hardware
• Will hold up to 81′ of 3/16″ cable, up to 61′ of 7/32″ cable, or up to 43′ of 1/4″ cable

43278 – Worm Gear Winch – WG2000 (Standard Drum) – 2000 lb/908kg

43280 Worm Gear Winch – WG2000HEX (Standard/Hex Driven)- 908kg

Dutton-Lainson® worm gear winch for horizontal pulling and vertical lifting applications
• 2,000 lb capacity
• 7″ handle with ergonomic handle grip can be easily attached or removed without tools
• Standard reel automatically stops turning whenever cranking is stopped, locking load in place
• Powder coated copper bronze finish, zinc plated TUFFPLATE® finish on hardware
• Will hold up to 82′ of 7/32″ cable, up to 59′ of 1/4″ cable, or up to 49′ of 9/32″ cable
• 5/8″ hex drive allows for operation with an electric drill hooked directly to the drive shaft for increased operating speed

43780 – Worm Gear Winch WG2000STRAP Std. Drive, Strap Reel, Black

43286 Worm Gear Winch – WG2000SLD (Split Reel, Loop Driven) 2000lb

Dutton-Lainson® worm gear winch for horizontal pulling and vertical lifting applications
• 2,000 lb capacity
• Split reel allows for simultaneous operation of two lines from opposite directions for greater versatility
• Loop drive allows winch to be mounted out of reach and operated with a long shepherds hook and, if desired, with a variable speed electric drill
• Split reel automatically stops turning whenever cranking is stopped, locking load in place
• Powder coated copper bronze finish, zinc plated TUFFPLATE® finish on hardware
• Will hold up to 82′ of 7/32″ cable, up to 59′ of 1/4″ cable, or up to 49′ of 9/32″ cable (cable sizes smaller or larger than these are not recommended

• 10950 WG1500 BZ Dimensional

• 10970 WG2000 BZ Dimensional

• 11001 WG2000 HEX BZ Dimensional

MPN: 10950
MPN: 10970
MPN: 11002
MPN: 10952
MPN: 11001
MPN: 10976
