Description

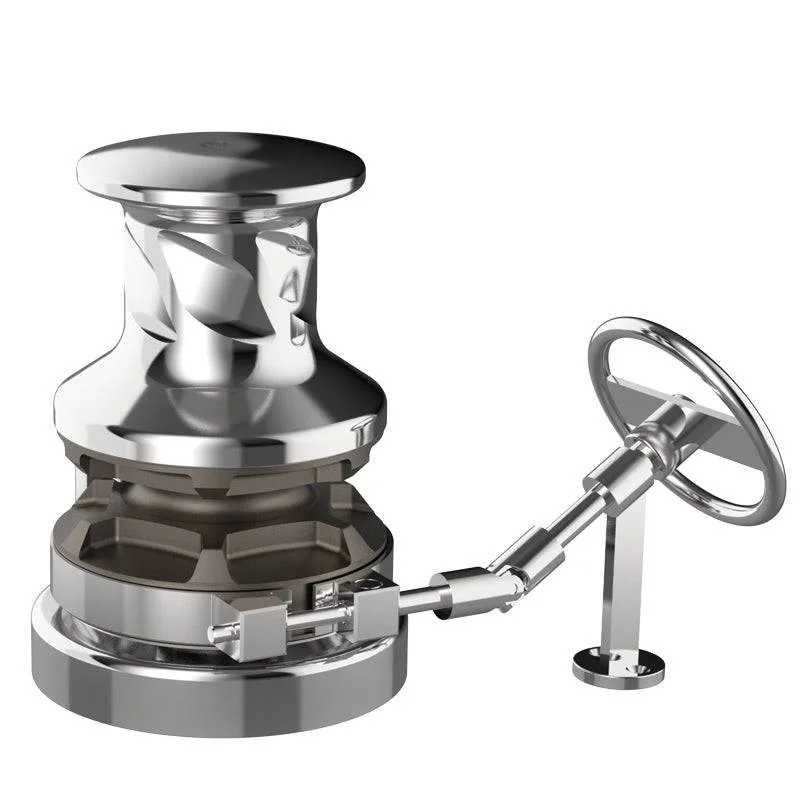

The brand new Lofrans’ SX7 is the ideal option for the popular range of Mega Yachts of 80 -110 ft.
It combines top performance, absolute safety and , while it is suitable for chains of 12-14 mm.
As all Lofrans’ windlasses, the SX7 is made of marine grade materials for extra mechanical strength and in order to withstand the marine environment.
Main features:
- Luxury stainless steel base and drum
- Independent gypsy and drum operation
- Manual chain release
- Chain counter magnet pre-installed as standard
- Anodised gearbox suitable for marine use
- Available DC, AC and hydraulic motors
- Chain pipe included in the package
Dimension for 3500W & 4000W
Dimensions for Hydraulic
| Code | |
|---|---|
| 636459 | WINDLASS V. SX7 S/S G+D 3500W/24V 12-13DIN766 |
| 636464 | WINDLASS V. SX7 S/S G+D R. 3500W/24V 12-13DIN766 |
| 636518 | WINDLASS V. SX7 S/S G+D 3500W/24V 14mm |
| 636519 | WINDLASS V. SX7 S/S G+D R. 3500W/24V 14mm |
| 636520 | WINDLASS V. SX7 S/S G+D 4000W/400V 12-13DIN766 |
| 636521 | WINDLASS V. SX7 S/S G+D R. 4000W/400V 12-13DIN766 |
| 636522 | WINDLASS V. SX7 S/S G+D 4000W/400V 14mm |
| 636523 | WINDLASS V. SX7 S/S G+D R. 4000W/400V 14mm |
| 636524 | WINDLASS V. SX7 S/S G+D 8cc HYD 14mm CW |
| 636525 | WINDLASS V. SX7 S/S G+D 8cc HYD 14mm CCW |
| 636526 | WINDLASS V. SX7 S/S G+D 8cc HYD 12 ISO-13 DIN 766 CW |
| 636527 | WINDLASS V. SX7 S/S G+D 8cc HYD 12 ISO-13 DIN 766 CCW |
More Info/ Document Downloads (Click on links below to Open)
| INOX Deck Fillers_IT |
|---|
