Name: Traveller Systems - by Barton
SKU: 6801796137018
Availability: InStock

Description

Removable mainsheet system creates more space in the cockpit

The removable mainsheet track system, which is ideally suited for all yachts up to 11.0m (36ft)

This adaptable mainsheet track system is designed to span between the cockpit seats when sailing but is easily removed to give maximum cockpit space when you want to relax on board. A perfect solution for converting coach roof mainsheet sheeting systems to one that is within reach of the helmsman, offering greater sail control and safety.

The removable track system is available in two sizes and can be used on yachts up to a maximum of 11.0m (36ft). The track has a maximum unsupported length of up to 700mm (28in). It can be attached and removed in seconds and uses Barton’s beam section track.

Beam track

Use beam track when spanning cockpits or companionway hatches, where unsupported length is required. A minimum of three fastenings should be used on either side of the unsupported length – place fastenings at 100mm centres in supported sections.

Ensure washers are fitted under the head of the bolt and between track & deck to ensure a secure seal

Barton Marine’s removable track system is simple to install. End plates are bolted on both sides of the cockpit. Slide the track under these plates and then lift vertically, which automatically locks in position. To remove the mainsheet track, simply push in the locking pins on each side, lower the track and slide it out.

Barton’s removable mainsheet system creates more space in the cockpit

Complete removable mainsheet track system kits

Part no 20910Suitable for yachts up to 8.5m (28.5ft)

Size 1 beam track 1m length

1 pr removable mainsheet track plates

4:1 traveller system with cleats on the traveller

Part no 24910Suitable for yachts up to 11m (36ft)

Size 2 beam track 1m length

1 pr removable mainsheet track plates

4:1 traveller system with cleats on the traveller

The maximum unsupported span of the beam track is

Size 1 = 400mm for yachts up to 8.5m (28ft)
Size 2 = 700mm for yachts up to 11.0m (36ft)
(Size 2 = 900mm for yachts up to 9.75m (32ft))

Available in black and silver anodised finish

A pelican hook assembly mid track connected to a floor mounted pad eye doubles the unsupported length, visit for more information.

Specifications	Size 1	Size 2
Max unsupported length	400mm	700mm
Height	27mm	34.5mm
Width W	20mm	26mm
Width W2	26mm	34mm

		Part No.	Max Unsupported Length

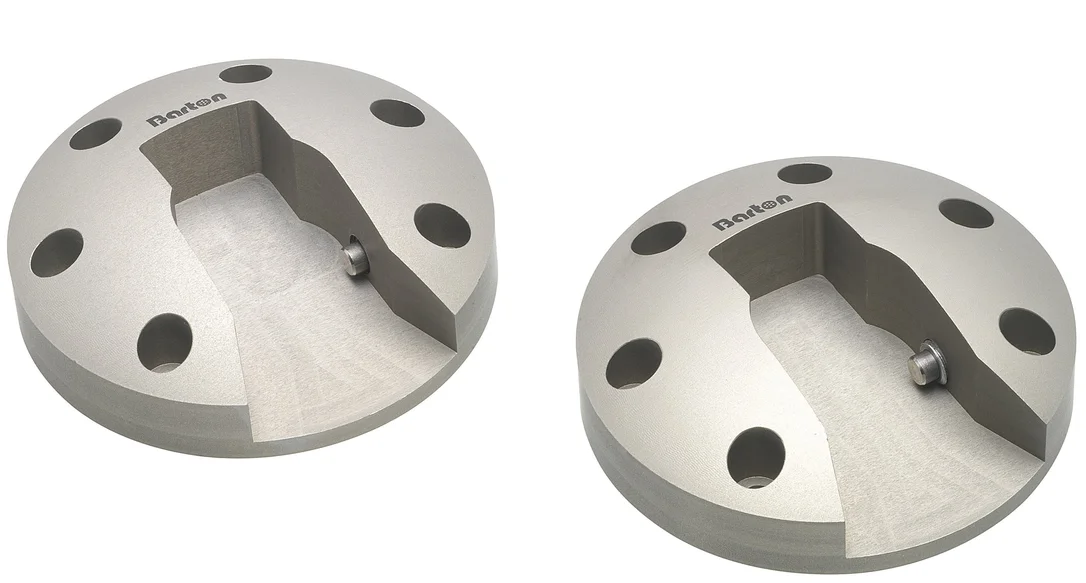

Beam track end fittings (pair)	Fits size 1 20003 beam track	20090	400mm
	Fits size 2 24003 beam track	24090	700mm

		Size 1	Size 2
Beam track	Per metre	20003	24003
	0.6 metre	20013	24013
	1.2 metre	20023	24023
	1.8 metre	20033	24033
	End cap (pair)	20100	24100

Complete removable mainsheet track system kits	Suitable for yachts up to 8.5m (28.5ft)	20910
	Suitable for yachts up to 11.0m (36ft)	24910
