Description

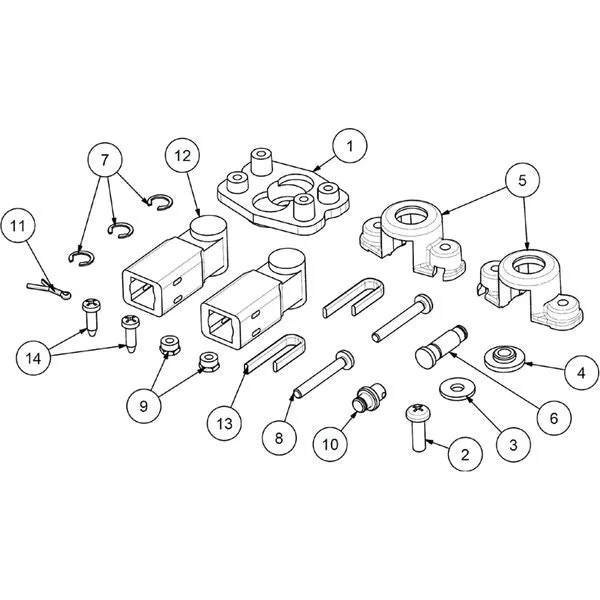

Ultraflex K75 control cable connection kit is used to connect Ultraflex C36 and MACH36 control cables to Ultraflex B110 and B110 ETC controls. The control cable connector kit contains the following parts:
1 – Throttle support C36 (MACH 36)
2 – Screw ISO 7045 – M5 x 16
3 – Washer 5.5 x 15 x 1.6
4 – Conduit fitting bushing
5 – Single conduit fitting
6 – Throttle pin C36 (MACH 36)
7 – Retaining ring
8 – Screw M4x30 ISO 7045 A2
9 – Nut M4
10 – Pin for C14 e C5
11 – Split pin ISO 1234 – 2 x 12
12 – Cable connector C36 (MACH 36)
13 – Brass conduit fitting
14 – Self-tapping screw AB 3.9 x 13 UNI6954
Specifications
| Brand | Ultraflex |
| Application | Ultraflex C36 & MACH36 Control Cables, Ultraflex B110 & B110 ETC Control Levers |
| Contents | Throttle support C36, Screw M5 x 16, Washer, Conduit fitting bushing, Single conduit fitting, Throttle pin C36, Retaining ring, Screw M4x30, Nut M4, Pin, Split pin, Cable connector C36, Brass conduit fitting & Self-tapping screw |
| Country of Origin | Italy |
More Info/Downloads
4 K75 installation instructions
Manufacturer Part Number: 43519M
