Description

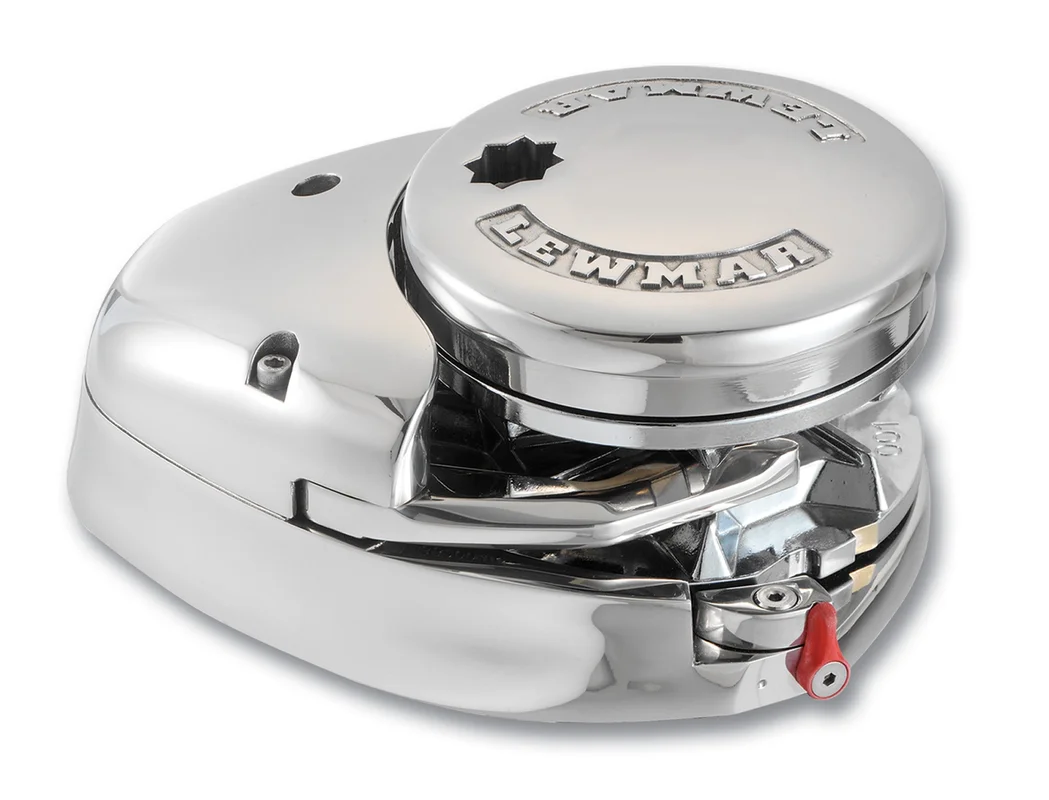

V1 Gypsy Only 12V RC8mm (001)6671011198-138 by LEWMAR
■ Rope-chain gypsy
■ Manual chain release (Free Fall)
■ Cone clutch for smooth, easy control
■ Optional manual override motor gearbox
■ W.A.R.P Drum
■ Fall safe anchor lock
■ Robust/reliableworm gearbox
■ FastFit™ option for quicker installation and less hassle
■ Emergency recovery kit available
■ Water resistant IP68 kits available
■ For boats up to 12m (40ft)
View gypsy selection guide here
Specification:
| Motor Power (W) | Max Pull (kg) | Working Load (kg) | Max Line Speed (m/min) | Normal Current Draw (A) | Circuit Breaker (A) | Approx Weight (kg) |
|---|---|---|---|---|---|---|
| 700 | 454 | 113 | 19 | 80 | 90 | 19 |
| Motor Power (W) | Max Pull (lbs) | Working Load (lbs) | Max Line Speed (ft/min) | Normal Current Draw (A) | Circuit Breaker (A) | Approx Weight (lbs) |
|---|---|---|---|---|---|---|
| 700 | 1000 | 250 | 65 | 80 | 90 | 42 |
V1-V6 Windlass Product Manual Iss.11 (English)
Ref 65001201 Iss.11
Product Literature
[.pdf]
