Description

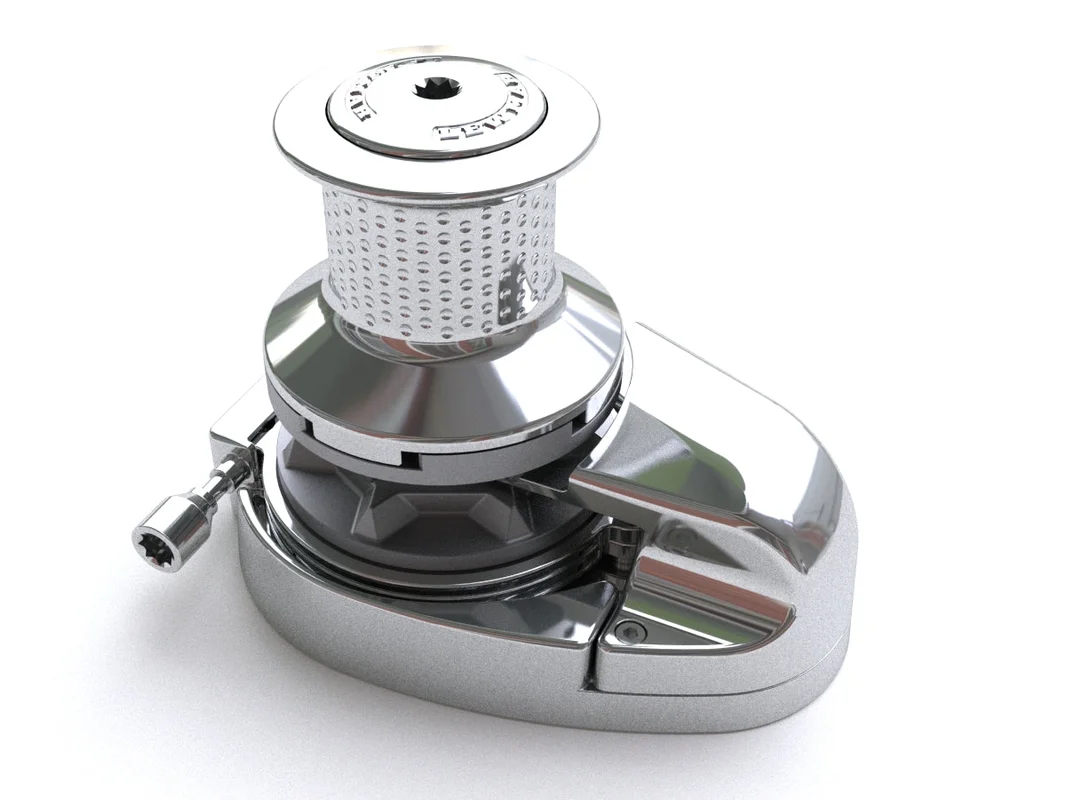

V8 Gypsy Drum Deck Unit, Right Hand with Close Brake69000378 by LEWMAR
Deck unit only, you will also need a motor gearbox, gypsy, circuit breakers, contactor and switches
V8 windlass feature
■ All stainless steel deck unit
■ Dog Clutch
■ A wide range of metric and imperial chain gypsies are available
■ Close-coupled or remote band brake options available
■ Two remote hand wheel options
■ Full range of power options including AC, DC and hydraulic
■ Independent capstan operation
■ Powered or manual chain release
■ W.A.R.P. Drum (Wear and Abrasion Resistant Pattern)
■ Left-and right-hand versions
■ Remote chain pipe version
■ For Boats up to 33m (108ft)
Specification:
| Length (mm) | Width (mm) | Height (mm) |
|---|---|---|
| 388 | 260 | 296 |
| Length (Inch) | Width (Inch) | Height (Inch) |
|---|---|---|
| 15 1/4″ | 10 1/4″ | 11 5/8″ |
V8-V12 Windlass Manual
Ref 66300094 Iss.11
Product Literature
[.pdf]
