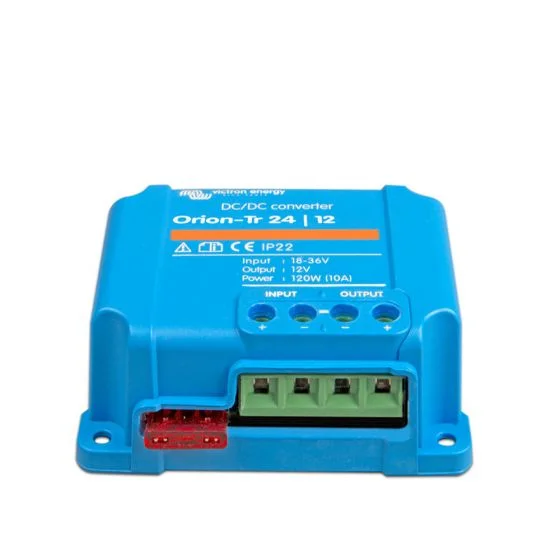

Victron Orion-Tr DC-DC converter-Non Isolated 24/12-10A (120W)

Description

Remote on-offThe remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery chargerFor example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output currentAn unlimited number of units can be connected in parallel.

IP43 protectionWhen installed with the screw terminals oriented downwards.

Screw terminalsNo special tools needed for installation.

Input fuseOn 12V and 24V input models only.

An ever increasing amount of electrical equipment is now being used in mobile applications. Most equipment has been designed for 12Vdc and therefore requires a DC-DC Converter to reduce the voltage from 24Vdc to 12Vdc. Some very sensitive equipment needs a stable 12V output so we can provide 12V-12V converters to ensure a constant voltage no matter if the battery is charged or discharged.

All models with adjustable output can be used as a battery charger. For example to charge a 12V starter or accessory battery in an otherwise 24V system. They can also be paralleled to increase output current, with the connection of a possible five units.
