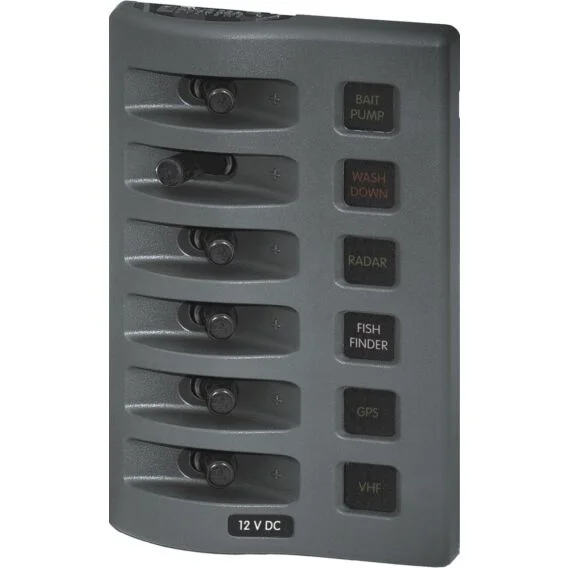

Description
| Specifications | |
|---|---|
| Weatherproof* | Waterproof |
| Positions | 6 |
| Nominal Voltage | 12V DC |
| Circuit Protection | Fuse |
| Maximum Amperage** | 15A @ 12V DC (per circuit) |
| Panel Cumulative Rating | 90A |
| Backlit Label*** | Bicolored LED |
| Backlighting Amperage | 10mA /Illuminated Circuit |
| Backlighting Voltage | 12V DC |
| Material | Reinforced Polycarbonate |
| Height | 6.00in (152.4 mm) |
| Width | 3.88in (98.55 mm) |
| Depth | 2.50in (63.5 mm) |
| Weight | 1.15lb (0.52 kg) |
*Constructed or protected so that exposure to the weather will not interfere with successful operation in rain, spray, and splash.
**Maximum amperage ratings are dependent on use of appropriately sized fused and wire for a given application.
***Bicoloured LEDs (Fuse Panels only) illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Colour) circuits. No lights in any position likely indicate there is no power to the panel.
